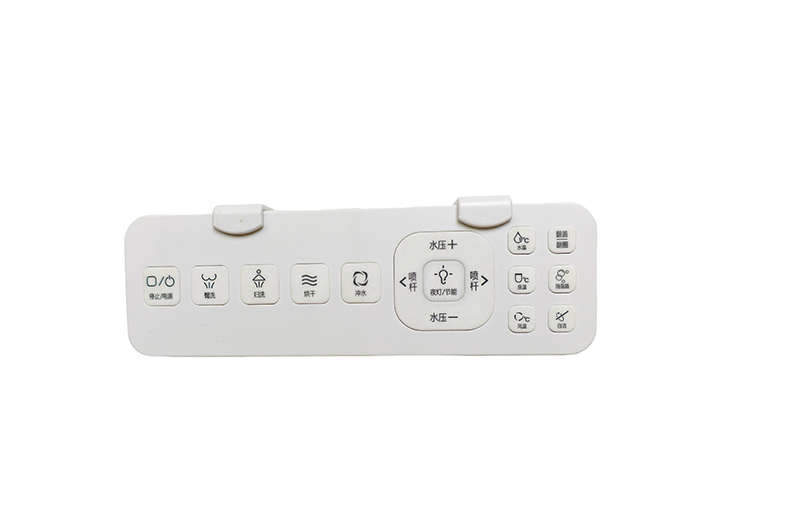

Bidet Seat Components Electronic Toilet Remote Panel
SZH's smart toilet control board PCBA is designed for premium electronic bidets, integrating seat heating, energy-saving algorithms, and multi-layer safety protection for enhanced user experience. With over 10 years of expertise, we provide ODM/OEM solutions for global brands, leveraging advanced R&D in precision molds and vertically integrated supply chains for fast delivery and cost efficiency. Annual production capacity exceeds 2 million units, SZH provide flexible customization, empowering clients to lead the smart bathroom market.
- SZH
- China
- Information
I. Product Positioning & Market Value
As the intelligent control terminal of modern bathroom systems, this smart toilet remote achieves precise wireless control of various toilet functions through advanced communication technology. Designed to industrial-grade standards, it integrates IoT technology with user-centric interaction design to deliver convenient, comfortable and intelligent bathroom experiences. An essential component of premium bathroom solutions.
II. Core Technical Parameters
Wireless Communication Module
2.4GHz adaptive frequency hopping technology
Bidirectional AES-128 encrypted communication
Transmission range: 10m indoor/20m outdoor (environment dependent)
Anti-interference: Automatically avoids WiFi conflicts
Power efficiency: <10μA standby current
Hardware Architecture
Main control: STM32L4 ultra-low-power MCU
Memory: 256KB Flash + 64KB RAM
Power system: Dual power option (CR2032/AAA batteries)
Protection rating: IPX4 waterproof/dustproof
Operating temperature: -20℃~60℃ wide range
III. Functional Characteristics
Basic Control Functions
Wash system:
Dual-nozzle independent control
5-level water pressure adjustment (30-100kPa)
±1℃ precise temperature control
Seat system:
3-zone independent heating
5-level temperature adjustment
Auto energy-saving mode
Smart Interaction
Proximity sensing: Automatic user detection
Voice prompts: Operational status feedback
Remote control: Mobile APP connectivity
Safety Protection
Leakage protection
Over-temperature protection
Auto power-off safety
IV. Reliability Verification
Environmental Tests
Damp heat: 60℃/95%RH for 168hrs
Cold start: -30℃ operation
Thermal cycling: -20℃~60℃ rapid transition (100 cycles)
Mechanical Tests
Button durability: 200,000 presses
Drop test: 2m height (6 surfaces)
Vibration: 5-500Hz random vibration (3hrs)
Lifespan Tests
Continuous operation: 5,000hrs
Battery life: 2 years (CR2032 standard use)
V. Technical Support
Support System
Complete SDK package
Open protocol documentation
Deep customization support
Quality Assurance
CE/FCC/RoHS certified
24-month extended warranty
Global service network
Manufacturing Support
PCBA solution provision
Mold sharing services
Mass production quality control
Featuring modular design for flexible configuration, this product supports rapid customization while maintaining rigorous reliability across all environments. Its intelligent control logic and ergonomic design truly elevate living standards through technology.
Custom Smart Toilet Mainboard PCBA
Modular Function Design
l Core Functions (Rapid Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
|
l Advanced Customization
- Electronic Extensions:
• IoT Control: APP/Wireless remote
• HMI: Smart display + Voice feedback
• Health: urinalysis (interface reserved)
- Mechanical Synergy:
• Auto-lid motor drive optimization
• Precision foam generator control
End-to-End Development
Vertical Manufacturing Advantage:
• Mold R&D: fast structural development (solves deformation/leaks)
• Electro-mechanical integration: Unified PCBA & heating module design
• Pilot to mass production: in-house SMT+assembly to ensure fast production
Competitive Benchmarking
Traditional Development Pain Points | Our Solutions | Technical Support |
slow development due to excessive feature integration | Modular design + pre-reserved interfaces | patent portfolio |
Electro-mechanical design misalignment | Parallel electro-mechanical co-development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validated architecture (50% test time reduction) | 10-year ODM empirical database |
Transform your smart toilet concept into a market-ready product. Welcome to contact with us today for a personalized proposal with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
