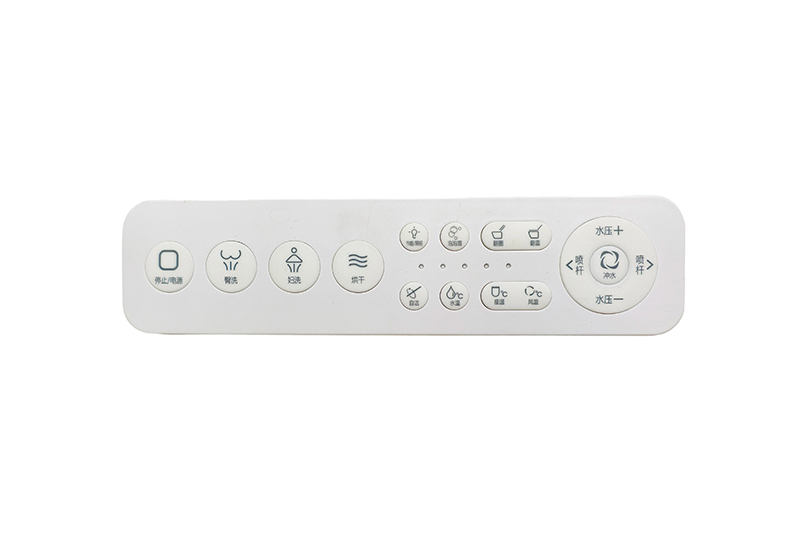

Universal Waterproof Smart Bidet Toilet Control Remote
SZH's smart toilet control board PCBA is designed for premium electronic bidets, integrating seat heating, energy-saving algorithms, and multi-layer safety protection for enhanced user experience. With over 10 years of expertise, we provide ODM/OEM solutions for global brands, leveraging advanced R&D in precision molds and vertically integrated supply chains for fast delivery and cost efficiency. Annual production capacity exceeds 2 million units, SZH provide flexible customization, empowering clients to lead the smart bathroom market.
- SZH
- China
- Information
I. Product Overview
The smart toilet remote control is a core control device in modern bathroom systems, utilizing advanced wireless communication technology to achieve precise control of various smart toilet functions. This product integrates microelectronics technology, RF communication technology, and human-machine interaction technology to provide users with convenient and comfortable operation experience.
II. Technical Features
Wireless Communication System
Employs 2.4GHz proprietary communication protocol with following advantages:
Communication range up to 10 meters (in unobstructed environments)
Supports bidirectional data verification (command transmission accuracy ≥99.9%)
Strong anti-interference capability (compatible with other smart devices)
Low-power design (single button press consumption ≤0.5mA)
Hardware Configuration
Main control chip: 32-bit ARM Cortex-M4 processor
Memory system: Built-in 128KB Flash (supports function parameter storage)
Power management: CR2032 coin cell battery (typical service life 12 months)
Waterproof design: IPX4 rating (resists daily water splashes)
III. Functional Characteristics
Basic Control Functions
Wash control: Supports multiple cleaning modes (posterior wash/feminine wash)
Water temperature adjustment: 5 precise temperature levels (30-38℃)
Seat temperature adjustment: 5 heating levels (30-40℃)
Drying control: 3 air flow levels
Energy-saving mode: Automatic low-power state
Status display: LED indicators for real-time operation feedback
IV. Product Reliability
Environmental Adaptability
Operating temperature: -10℃～50℃
Storage temperature: -20℃～60℃
Relative humidity: ≤90%RH (non-condensing)
Mechanical Performance
Button lifespan: 100,000 press tests
Drop test: 1.5 meter height drop without damage
Salt spray test: 48 hours corrosion-free
V. Technical Services
Technical Support
Complete development documentation provided
Custom function development supported
Testing tools and SDK available
Quality Assurance
CE and RoHS certified
12-month warranty
Comprehensive after-sales service system
This product is manufactured with eco-friendly materials and complies with international safety standards, making it an ideal choice for enhancing bathroom experience. The design incorporates ergonomic principles with reasonable button layout and comfortable operation feel, meeting usage requirements of users across all age groups.
Custom Smart Toilet Mainboard PCBA
Modular Function Design
l Core Functions (Rapid Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
|
l Advanced Customization
- Electronic Extensions:
• IoT Control: APP/Wireless remote
• HMI: Smart display + Voice feedback
• Health: urinalysis (interface reserved)
- Mechanical Synergy:
• Auto-lid motor drive optimization
• Precision foam generator control
End-to-End Development
Vertical Manufacturing Advantage:
• Mold R&D: fast structural development (solves deformation/leaks)
• Electro-mechanical integration: Unified PCBA & heating module design
• Pilot to mass production: in-house SMT+assembly to ensure fast production
Competitive Benchmarking
Traditional Development Pain Points | Our Solutions | Technical Support |
slow development due to excessive feature integration | Modular design + pre-reserved interfaces | patent portfolio |
Electro-mechanical design misalignment | Parallel electro-mechanical co-development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validated architecture (50% test time reduction) | 10-year ODM empirical database |
Transform your smart toilet concept into a market-ready product. Welcome to contact with us today for a personalized proposal with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
