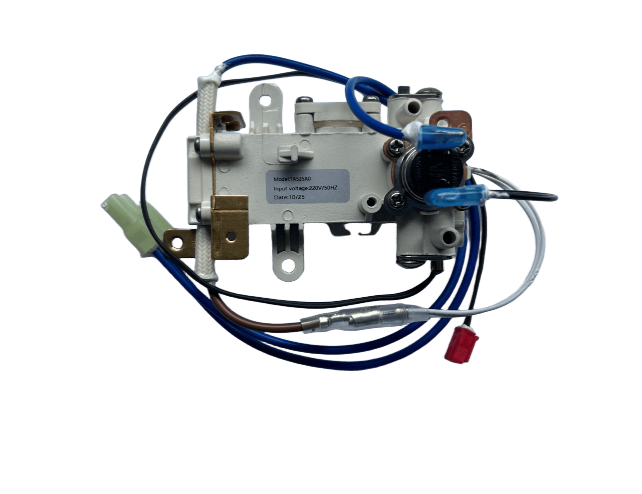

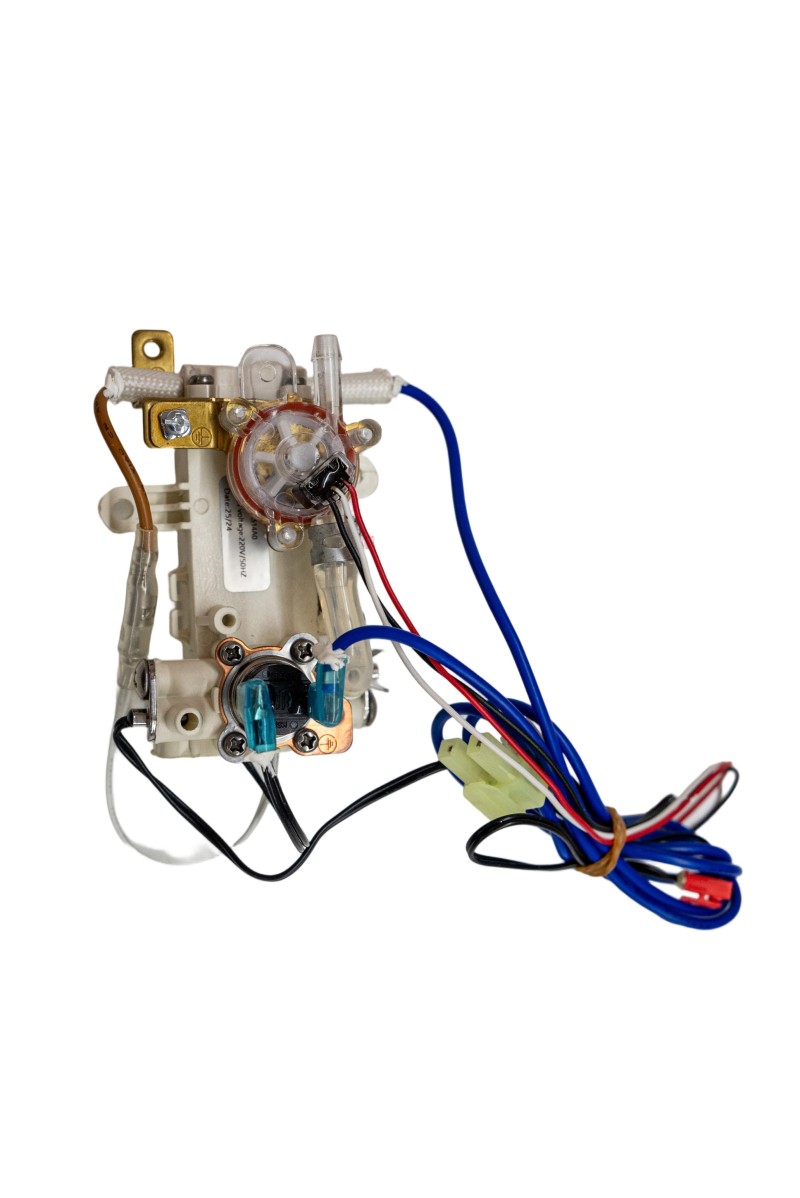

Eco-friendly Fast-heating Water Heater
SZH has its own fully self-contained production plant with several high-precision SMT lines at the core, and additionally DIP, testing, and assembly lines. Thus, they can provide flexible manufacturing from prototype up to mass PCB assembly.
High-Precision SMT Lines: Able to mount 01005 components, 0.3mm pitch BGA, QFN, and other fine-pitch packages.
Complete Process Coverage: SMT double-sided, mixed assembly, selective soldering, and press-fit technology are all included.
Strict Quality Control: Inspection throughout the whole process with SPI, AOI, X-Ray, functional testing, and aging test systems.
- SZH
- China
- Information
I. Product Overview
This instant water heater is the core heating component of the smart toilet, featuring industrial-grade design standards and combining efficient heating with intelligent control.
II. Core System Analysis
Power Input
Rated Voltage: AC 220V 50Hz
Multi-Channel Circuit Design
Safety Components
Blue Fuse Element
Multi-Point Screw Fixing
III. Main Technical Parameters
Performance Parameters
Circuit Configuration: Multi-Channel Independent Control
Protection Level: IPX4
Protection System
Overcurrent Protection
Multi-Layer Insulation Design
Grounding Protection
Structural Safety
Metal + Engineering Plastic Composite Housing
Dustproof and Waterproof Construction
IV. Product Advantages
Industrial-Grade Design
Metal Main Structure
Multi-Layer Safety Protection
Modular Circuit Layout
V. Installation and Maintenance Guide
Regular Inspections
Check the fuse element condition
Verify the raliability of wiring connections
Durability and Certification
Passed salt spray test (corrosion resistance)
Professional terminal connections
10-year design service life
Modular Function Design
Core Functions (Quick Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
High-end Customization
Electronic Extension Features:
IoT Control: APP/wireless remote
Human-Machine Interface: Smart display + voice feedback
Health: urine analysis (interface reserved)
Mechanical Collaboration:
Automatic lid motor drive optimization
Precision foam generator control
End-to-End Development
Vertical Manufacturing Advantages:
Mold R&D: Rapid structural development (solving deformation/leakage issues)
Electro-mechanical integration: Integrated PCBA and heating module design
From Pilot Production to Mass Production: In-house SMT + assembly to ensure fast production
Competitive Benchmarking
Pain Point of Traditional Development | Our Solution | Technical Support |
Slow development caused by excessive integration of features | Modular design + reserved interfaces | patent portfolio |
Motor mechanical design misalignment | Parallel electromechanical joint development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validation architecture (50% reduction in testing time) | 10 years of ODM experience database |
Turn your smart toilet concept into a market-ready product. Contact us today to get a personalized plan that includes functional prototypes, bill of materials optimization analysis, and a turnkey delivery schedule.
