Scale & Frost-Proof Instant Heater: Thermal Shock Resistant Smart Toilet Water Heating System
SZH's smart toilet control board PCBA is designed for premium electronic bidets, integrating seat heating, energy-saving algorithms, and multi-layer safety protection for enhanced user experience. With over 10 years of expertise, we provide ODM/OEM solutions for global brands, leveraging advanced R&D in precision molds and vertically integrated supply chains for fast delivery and cost efficiency. Annual production capacity exceeds 2 million units, SZH provide flexible customization, empowering clients to lead the smart bathroom market.
- SZH
- China
- Information
I. Product Overview

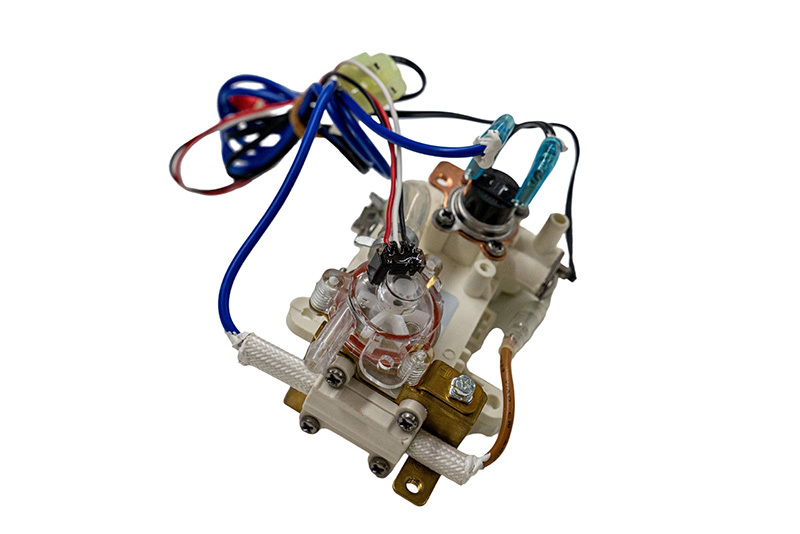

This instant water heater serves as the core heating component of smart bathroom systems, utilizing advanced flash-heating technology to deliver millisecond-response hot water output. As illustrated, the product adopts a modular design that integrates hydraulic and electrical systems, ensuring continuous stable hot water supply for smart toilets through precision temperature control and multi-layer safety protection.
II. Core Structural Features
Mechanical Construction
Unibody chamber design (white main body in illustration)
316 stainless steel heating tube (metallic component)
Key Components
Central transparent inspection window (pressure/flow monitoring)
Multi-port metal connectors (G1/2 standard threads)
Leak-proof sealing structure (silicone gasket + mechanical locking)
III. Performance Parameters
Heating System
Power output: 1600W/3000W dual-mode
Heat-up rate: Reaches 40°C in 1 second
Temperature stability: ±0.5°C
Max pressure resistance: 1.2MPa
Electrical Safety
Insulation resistance: ≥100MΩ
Protection rating: IPX4
Leakage current cutoff: ≤10mA
IV. Technological Innovations
Smart Control System
Dual-channel temperature sensing (metallic probes in illustration)
PID + fuzzy logic algorithm for temperature control
Dynamic power adjustment
Safety Protection
Blue pressure relief valve (overpressure protection)
Dry-fire auto cutoff
Water-electric separation design
V. Application Advantages
Space Optimization
Compact design (dimensions compatible with standard toilets)
Plug-and-play interfaces
Maintenance Convenience
Modular quick-release structure (screw mounting points shown)
Visual fault diagnosis (via inspection window)
Certified under ISO 9001 Quality Management System, all connectors undergo 2,000 insertion cycles testing, with core heating components rated for 10,000+ hours lifespan. The illustrated precision engineering ensures long-term reliable operation in humid environments.
Custom Smart Toilet Mainboard PCBA
Modular Function Design
l Core Functions (Rapid Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
|
l Advanced Customization
- Electronic Extensions:
• IoT Control: APP/Wireless remote
• HMI: Smart display + Voice feedback
• Health: urinalysis (interface reserved)
- Mechanical Synergy:
• Auto-lid motor drive optimization
• Precision foam generator control

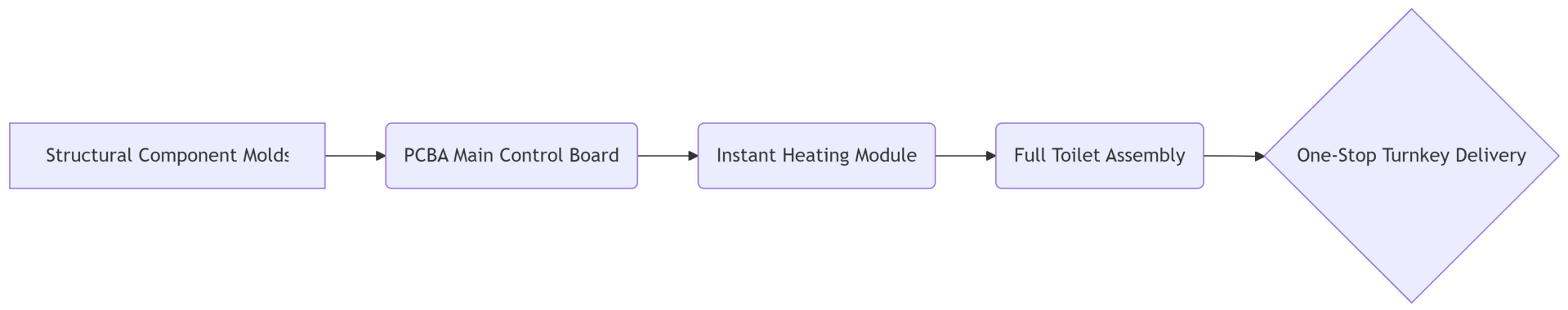

End-to-End Development
Vertical Manufacturing Advantage:
• Mold R&D: fast structural development (solves deformation/leaks)
• Electro-mechanical integration: Unified PCBA & heating module design
• Pilot to mass production: in-house SMT+assembly to ensure fast production
Competitive Benchmarking
Traditional Development Pain Points | Our Solutions | Technical Support |
slow development due to excessive feature integration | Modular design + pre-reserved interfaces | patent portfolio |
Electro-mechanical design misalignment | Parallel electro-mechanical co-development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validated architecture (50% test time reduction) | 10-year ODM empirical database |
Transform your smart toilet concept into a market-ready product. Welcome to contact with us today for a personalized proposal with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
