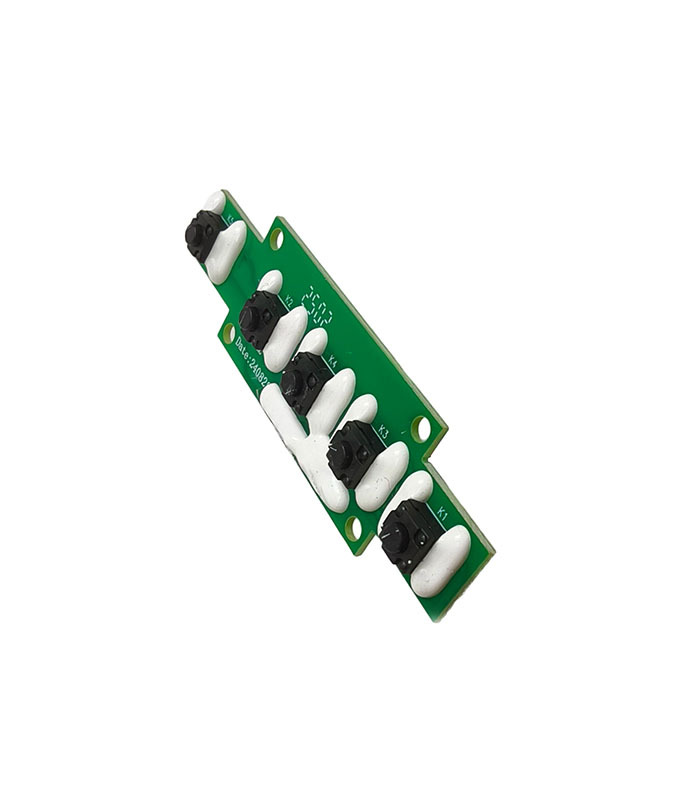

Integrated Side Panel For Smart Toilet Function Buttons
SZH's smart toilet control board PCBA is designed for premium electronic bidets, integrating seat heating, energy-saving algorithms, and multi-layer safety protection for enhanced user experience. With over 10 years of expertise, we provide ODM/OEM solutions for global brands, leveraging advanced R&D in precision molds and vertically integrated supply chains for fast delivery and cost efficiency. Annual production capacity exceeds 2 million units, SZH provide flexible customization, empowering clients to lead the smart bathroom market.
- SZH
- China
- Information
Product Overview
The Smart Toilet Side Control Panel serves as the core user interface for operating smart toilet functions. Mounted on the side of the toilet seat, it provides an intuitive and convenient operation experience. Designed with waterproof and moisture-resistant features, it ensures long-term stable performance in bathroom environments.
Key Features
✅ Water & Moisture Resistance – IPX4 or higher waterproof rating, suitable for high-humidity conditions.
✅ Multi-Function Control – Supports flushing, washing, drying, and other functions.
✅ Durability & Safety – Made of high-quality ABS/silicone materials with 100,000+ press cycles lifespan.
✅ High Compatibility – Compatible with mainstream smart toilet motherboards and supports customizable function allocation.
Product Advantages
? Easy Operation – One-touch control eliminates complex remote operations.
? Simple Maintenance – Modular design allows for individual replacement if damaged.
? Energy-Efficient & Eco-Friendly – Low-voltage power supply (DC 12V/24V), ensuring safety and energy savings.
Why choose our side control buttons?
? more intuitive operation: icon + text dual identification
? more flexible installation: supports installation on both sides
? Easier to maintain: Modular design, individual keys can be replaced
? more reliable quality: passed 100,000 durability tests
Custom Smart Toilet Mainboard PCBA
Modular Function Design
l Core Functions (Rapid Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
|
l Advanced Customization
- Electronic Extensions:
• IoT Control: APP/Wireless remote
• HMI: Smart display + Voice feedback
• Health: urinalysis (interface reserved)
- Mechanical Synergy:
• Auto-lid motor drive optimization
• Precision foam generator control
End-to-End Development
Vertical Manufacturing Advantage:
• Mold R&D: fast structural development (solves deformation/leaks)
• Electro-mechanical integration: Unified PCBA & heating module design
• Pilot to mass production: in-house SMT+assembly to ensure fast production
Competitive Benchmarking
Traditional Development Pain Points | Our Solutions | Technical Support |
Slow development due to excessive feature integration | Modular design + pre-reserved interfaces | patent portfolio |
Electro-mechanical design misalignment | Parallel electro-mechanical co-development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validated architecture (50% test time reduction) | 10-year ODM empirical database |
Transform your smart toilet concept into a market-ready product. Welcome to contact with us today for a personalized proposal with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
