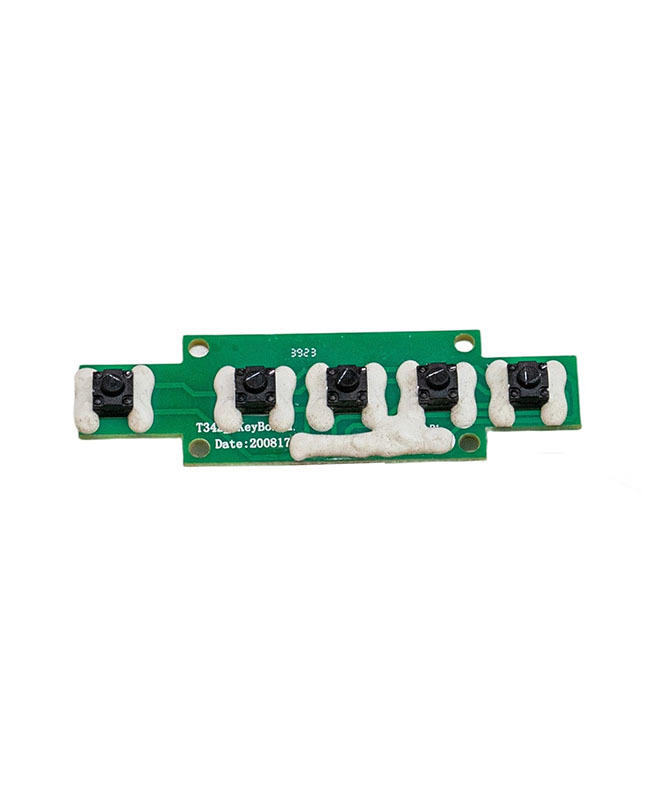

Smart Toilet Side Control Panel Parts
SZH's smart toilet control board PCBA is designed for premium electronic bidets, integrating seat heating, energy-saving algorithms, and multi-layer safety protection for enhanced user experience. With over 10 years of expertise, we provide ODM/OEM solutions for global brands, leveraging advanced R&D in precision molds and vertically integrated supply chains for fast delivery and cost efficiency. Annual production capacity exceeds 2 million units, SZH provide flexible customization, empowering clients to lead the smart bathroom market.
- SZH
- China
- Information
I. Product Overview
The Smart Toilet Side Control Panel serves as the core human-machine interface (HMI) component of intelligent bathroom systems. Featuring industrial-grade waterproof construction, it integrates multiple functional control buttons to deliver stable, reliable operation and an intuitive user experience for smart toilet systems.
II. Core Technical Parameters
III. Basic Control Functions
✅ Wash Control (Posterior/Feminine)
✅ Stop
✅ Flush
✅ Drying Control (3-speed adjustment)
✅ Auditory Feedback (Optional click sound)
IV. Key Advantages
User Experience
? Ergonomic Layout – Optimized for thumb operation
? Anti-Misoperation Design – Prevents accidental presses
? Tactile Recognition – Raised dots/indents for blind operation
Quality & Reliability
? 96-Hour Salt Spray Test (ASTM B117)
? 5,000 Insertion Durability Test
? CE / RoHS Certified
V. Applications
Residential Use
? All-in-one smart toilets
? Split-type smart toilets
? Bidet seat upgrades
Commercial Use
? Hotel bathroom systems
? Medical care facilities
? Public restrooms
VI. Technical Highlights
? Modular Design – Enables quick replacement
? Humidity-Resistant Circuitry – Stable performance in wet environments
? EMI-Shielded PCB – Prevents signal interference
Custom Smart Toilet Mainboard PCBA
Modular Function Design
l Core Functions (Rapid Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
|
l Advanced Customization
- Electronic Extensions:
• IoT Control: APP/Wireless remote
• HMI: Smart display + Voice feedback
• Health: urinalysis (interface reserved)
- Mechanical Synergy:
• Auto-lid motor drive optimization
• Precision foam generator control
End-to-End Development
Vertical Manufacturing Advantage:
• Mold R&D: fast structural development (solves deformation/leaks)
• Electro-mechanical integration: Unified PCBA & heating module design
• Pilot to mass production: in-house SMT+assembly to ensure fast production
Competitive Benchmarking
Traditional Development Pain Points | Our Solutions | Technical Support |
slow development due to excessive feature integration | Modular design + pre-reserved interfaces | patent portfolio |
Electro-mechanical design misalignment | Parallel electro-mechanical co-development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validated architecture (50% test time reduction) | 10-year ODM empirical database |
Transform your smart toilet concept into a market-ready product. Welcome to contact with us today for a personalized proposal with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
