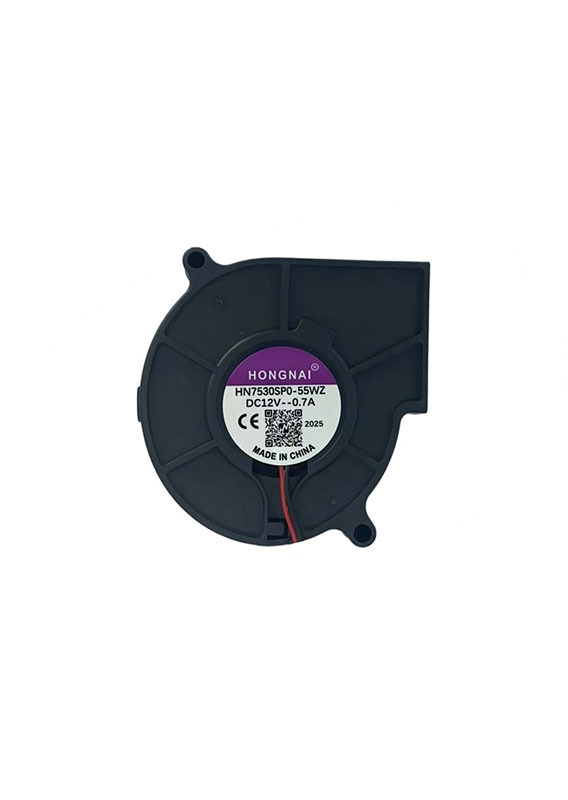

Intelligent Toilet Drying Fan / Blower

I. Product Overview

        The Smart Toilet Drying Fan is a core functional module in modern intelligent bathroom systems, utilizing advanced airflow control technology to deliver a comfortable and hygienic drying experience. Integrating a high-efficiency motor system, intelligent temperature control, and low-noise design, it precisely regulates airflow temperature, speed, and direction for fast, uniform drying, significantly enhancing user comfort.

II. Core Technical Parameters

Power System

• Brushless DC Motor

• Speed Range: 2000–6000 RPM (stepless speed adjustment)

• Power Consumption: 15W (max load)

• Bearing System: Dual ball bearings

• Service Life: ≥8,000 hours (continuous operation)

Airflow Performance

• Airflow Output: 3.5–7.5 CFM (adjustable)

• Air Duct Design: 3D spiral airflow guide

• Air Temperature: 35–45°C (±1°C precision)

• Heat-up Time: ≤15 sec (room temp to set temperature)

III. Functional Features

✅ 3-Speed Adjustment (Gentle/Standard/Power)
✅ Safety Protection System:

• Overheat protection (dual temperature sensors)

• Motor overload protection

• Foreign object detection

• Electrical insulation (3,750V withstand voltage)

IV. Product Advantages

Silent Operation

• Noise Level: ≤35dB(A) at 1m distance

• Vibration Damping: Silicone shock-absorbing mounts

• Dynamic Balance Calibration: ≤0.5g·mm

Energy Efficiency & Eco-Friendly

• Standby Power: <0.5W

• Compliance: ERP Lot 9 Energy Efficiency Standard

• 95% Recyclable Materials

V. Reliability Testing

Environmental Tests

• High-Temperature Test: 60°C continuous operation (300 hrs)

• High-Humidity Test: 95% RH endurance test

• Thermal Shock Test: -20°C to 60°C cycling

Lifespan Tests

• Continuous Operation: 6,000 hours

• Start-Stop Cycles: 100,000 cycles

• Button Durability: 50,000 presses

VI. Technical Support

Technical Services

• Complete documentation (schematics, firmware)

• Custom development support

• Testing & validation assistance

Quality Assurance

• Certifications: CE / UL Listed

• Warranty: 36 months

• Global service network

Key Benefits

? Modular Design – Easy assembly & maintenance
? Adaptable – Compatible with various smart toilet models
? Optimized Performance – High efficiency, low noise, long lifespan
? Smart Control Algorithm – Ensures fast, even drying

This product is a critical component for enhancing smart toilet functionality, combining precision engineering with user-centric innovation.

Custom Smart Toilet Mainboard PCBA

Modular Function Design

l Core Functions (Rapid Integration)

l Advanced Customization

- Electronic Extensions:

  • IoT Control: APP/Wireless remote

  • HMI: Smart display + Voice feedback

  • Health: urinalysis (interface reserved)

- Mechanical Synergy:

  • Auto-lid motor drive optimization

  • Precision foam generator control

End-to-End Development

 Vertical Manufacturing Advantage:

  • Mold R&D: fast structural development (solves deformation/leaks)

  • Electro-mechanical integration: Unified PCBA & heating module design

  • Pilot to mass production: in-house SMT+assembly to ensure fast production

Competitive Benchmarking

Transform your smart toilet concept into a market-ready product. Welcome to contact with us today for a personalized proposal with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
