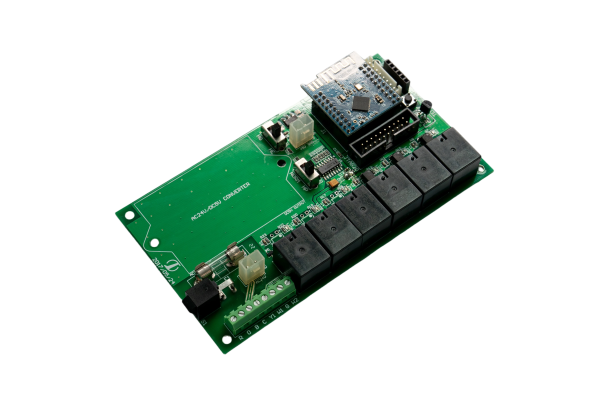

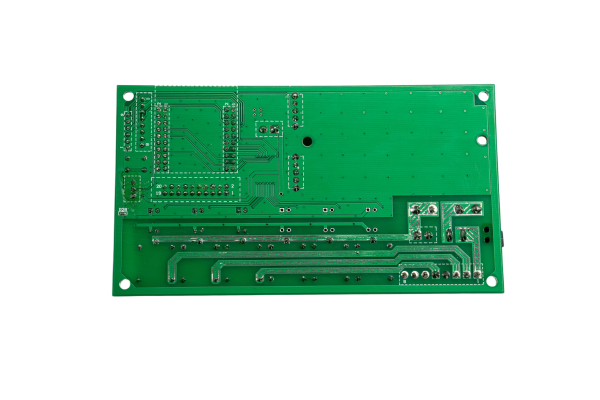

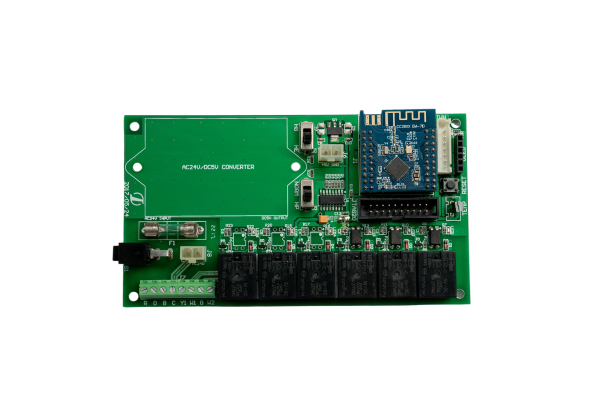

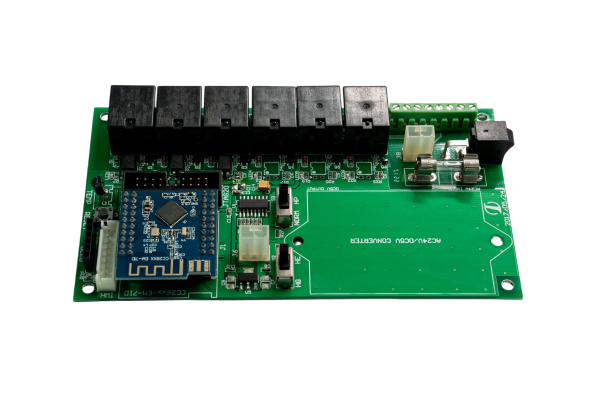

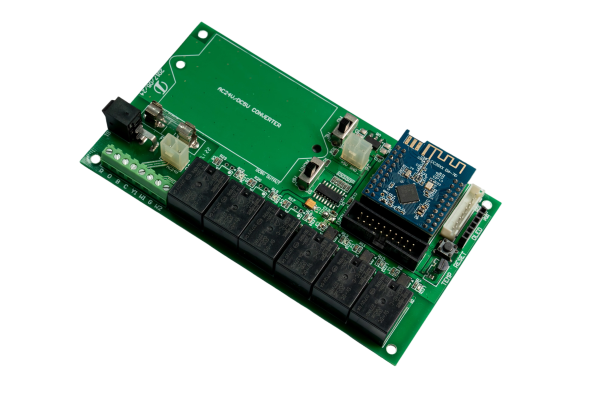

China Full Turnkey Printed Circuit Board Assembly PCBA
SZH operate a fully self-owned production base equipped with multiple high-precision SMT lines, complemented by DIP, testing, and assembly lines. This enables flexible production from prototyping to large-scale PCB assembly.
High-Precision SMT Lines: Support 01005 components, 0.3mm pitch BGA, QFN, and other fine-pitch package assembly.
Full-Process Coverage: Including double-sided SMT, mixed assembly, selective soldering, and press-fit technology.
Rigorous Quality Control: Full-process inspection with SPI, AOI, X-Ray, functional testing, and aging test systems.
- SZH
- China
- Information
What Does "Full Turnkey" PCBA Include?
Design & Engineering
DFM/DFA Analysis & Optimization
Design for Cost-Effectiveness
Prototyping Support
Component Procurement & Management
Global Supply Network (Authorized Distributors: TI, NXP, Murata, etc.)
BOM Optimization & Alternate Part Sourcing
Component Kitting & Inventory Management
Advanced Manufacturing
High-Precision SMT (01005, 0.3mm pitch BGA)
Double-Sided Mixed Assembly
Selective Soldering
Through-Hole Technology
Comprehensive Testing
Automated Optical Inspection (AOI)
X-Ray Inspection (for BGA, QFN)
In-Circuit Test (ICT)
Functional Test (FCT)
Burn-in & Environmental Stress Screening
Packaging & Logistics
ESD-Safe Packaging
Custom Packaging Solutions
Global Shipping & Logistics Support
Technical Specifications
| Parameter Category | Specification Details |
|---|---|
| PCB Substrate | FR-4, Aluminum, High-Frequency, Flex, Rigid-Flex |
| Min. Trace/Space | 3/3 mil |
| SMT Placement Accuracy | ±0.025mm, 01005 Components |
| BGA Assembly | 0.3mm pitch BGA, Package-on-Package (PoP) |
| Solder Paste | Lead/Lead-Free, Water Clean/No-Clean, Silver-bearing |
| Max. PCB Size | 510mm × 460mm |
| Layer Support | 1-24 Layer Multilayer Boards |
| Monthly Capacity | 50 Million+ Solder Points |
Industry Applications
Consumer Electronics
Smart Home Devices
Wearable Electronics
Power Control Boards
Industrial Automation
PLC Controllers
Industrial Sensor Modules
Motor Drive Boards
Medical Devices
Patient Monitoring Equipment
Portable Diagnostic Devices
Medical Instrument Control Boards
Automotive Electronics
Infotainment Systems
Vehicle Control Units (VCU)
EV Battery Management Systems (BMS)
Quality Assurance System
Base: Process Control
Incoming Quality Control (IQC)
SPC Monitoring on Production Line
Controlled Environment (Temp, Humidity, Cleanliness)
Mid: Inspection Technology
Automated Optical Inspection (AOI)
X-Ray Inspection for Hidden Joints
Flying Probe & Bed-of-Nails Testing
Peak: Reliability Verification
Full Functional Testing
Environmental Stress Screening
Burn-in & Lifecycle Testing
Why Choose China-Based Manufacturing?
| Factor | Traditional Outsourcing | Our Full Turnkey PCBA Service |
|---|---|---|
| Communication | Multiple vendors, timezone challenges | Single Point of Contact, bilingual support |
| Quality Control | Fragmented responsibility, varying standards | Unified Standard, full traceability |
| Cost Control | Hidden fees, lack of transparency | All-Inclusive Quote, no surprise costs |
| Lead Time | Delays from hand-off between vendors | Streamlined Process, 30% faster turnaround |
| Supply Chain Risk | Vulnerable to component shortages | Multi-Channel Sourcing, safety stock options |
Certifications & Trust
Client Testimonials: Brief quotes from 3-4 international clients.
Certification Wall: ISO, UL, CE, RoHS, REACH, IPC-A-610 Class 2/3.
Partner Logos: Authorized distributor badges for key component suppliers.
Frequently Asked Questions (FAQs)
Q1: What does "Full Turnkey" PCBA service mean?
A: It means we manage the entire process from PCB design review and component procurement to assembly, testing, and final packaging. You provide the design idea, we deliver the finished, functional PCBA.
Q2: What is your Minimum Order Quantity (MOQ)?
A: We support all volumes, from low-volume prototypes (1-10 pcs) to high-volume mass production (10K+), with flexible pricing.
Q3: What is the typical production lead time?
A: Standard lead time is 2-4 weeks, depending on design complexity and order quantity. Expedited service is available.
Q4: How do you ensure component quality and authenticity?
A: We source exclusively from authorized distributors and franchised partners, providing full Component Traceability Documentation.
Call to Action (CTA)
Instant Quote: Upload your files for a free, detailed quote.
Supported Files: Gerber, BOM, Pick & Place, Schematic.
Response within 24 hours.
Engineered in China, Trusted Worldwide – Your Reliable PCBA Partner.
