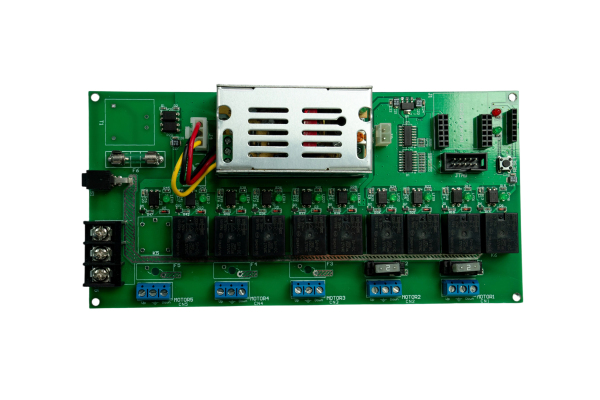

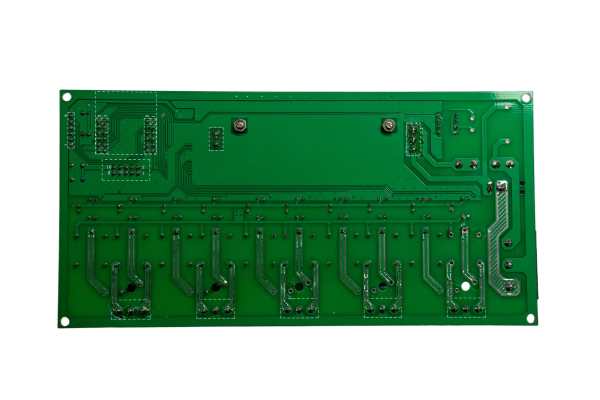

Custom Power Supply PCB Assembly Factory
SZH operate a fully self-owned production base equipped with multiple high-precision SMT lines, complemented by DIP, testing, and assembly lines. This enables flexible production from prototyping to large-scale PCB assembly.
High-Precision SMT Lines: Support 01005 components, 0.3mm pitch BGA, QFN, and other fine-pitch package assembly.
Full-Process Coverage: Including double-sided SMT, mixed assembly, selective soldering, and press-fit technology.
Rigorous Quality Control: Full-process inspection with SPI, AOI, X-Ray, functional testing, and aging test systems.
- SZH
- China
- Information
Product Overview
We are a professional custom PCBA (Printed Circuit Board Assembly) factory dedicated to providing high-performance, high-reliability, and fully customized power solution motherboards for our clients. From consumer electronics to industrial equipment, our PCBA motherboards meet diverse power management needs, offering one-stop services from design to mass production.
Core Advantages
1. Fully Customized Design
Circuit design and optimization based on specific client requirements (input/output specifications, dimensions, interfaces, environmental adaptability, etc.).
Supports multiple topologies (e.g., switching mode, linear, UPS).
Provides schematic design, PCB layout, thermal management, and EMC optimization support.
2. High-Quality Components & Manufacturing
Industrial-grade or automotive-grade electronic components ensure stable operation in harsh environments.
Fully automated SMT lines and through-hole assembly ensure soldering precision and consistency.
Compliant with IPC-A-610 Class 2/3 standards, with AOI and X-ray inspection.
3. High-Efficiency Power Management Performance
Wide input voltage range (e.g., AC/DC 85V-265V or DC 12V-48V).
High conversion efficiency (up to 95%+), low power consumption, and low ripple noise.
Integrated OVP, OCP, SCP, and OTP protection features.
4. Flexible Production – From Prototype to Mass Volume
Supports prototype, pilot run, and large-scale production with short lead times.
Delivers PCBA semi-finished boards or full assembly (including enclosure, heat dissipation, and connectors).
5. Comprehensive Technical Support & Certifications
Assistance with international safety and environmental certifications such as UL, CE, RoHS.
Design validation, test reports, and after-sales technical guidance provided.
Typical Applications
Industrial Automation: PLC control systems, motor drives, robotic arm power supplies
Communication Equipment: Base station power supplies, network switches, fiber module power
Medical Electronics: Patient monitors, medical power adapters, portable device charging management
New Energy: Solar inverters, energy storage systems, EV charging pile control boards
Consumer Electronics: Smart home devices, LED drivers, high-end audio power supplies
Service Process
Requirements Analysis – Client provides electrical parameters, mechanical dimensions, environmental requirements, etc.
Design & Simulation – Circuit design, PCB layout, thermal and signal integrity analysis.
Prototyping & Testing – Sample production followed by functional, aging, and environmental reliability tests.
Certification Support – Assistance with relevant industry certifications.
Mass Production & Quality Control – Production according to order volume with strict final inspection.
Delivery & After-Sales – On-time delivery with long-term technical support and warranty services.
Sample Technical Specifications (Customizable to client needs)
| Parameter | Specification |
|---|---|
| Input Voltage Range | AC 100-240V / DC 12-48V |
| Output Voltage | DC 3.3V / 5V / 12V / 24V (Multiple outputs customizable) |
| Output Power | 10W ~ 2000W (Designed to requirement) |
| Efficiency | ≥90% (Typical) |
| Operating Temperature | -40℃ ~ +85℃ |
| PCB Layers | 2-12 layers (Based on complexity) |
| Protection Features | OVP, OCP, SCP, OTP |
| Certification Support | UL, CE, RoHS, REACH |
Why Choose Us?
✅ 15+ years of PCBA industry experience, specializing in power supply design
✅ In-house SMT lines & strict quality control ensure high yield rates
✅ End-to-end project support from design to delivery with dedicated project management
✅ Cost-optimized solutions without compromising quality
✅ Rapid response – Prototype lead time typically 2-4 weeks
Get Your Custom Solution Now
If you have custom power supply PCBA requirements, please contact us with your specifications or consult for feasibility. We will provide professional advice and a quotation within 24 hours.
