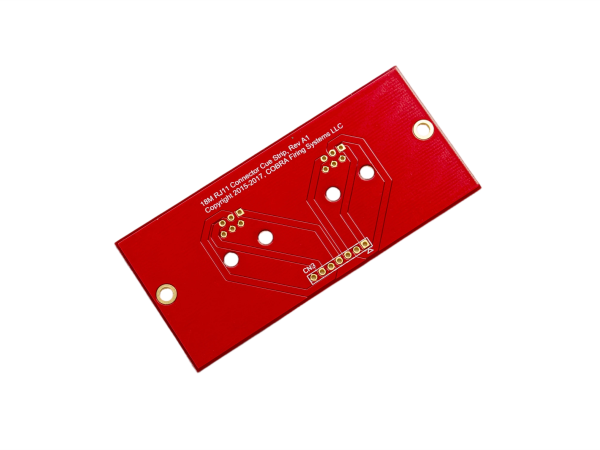

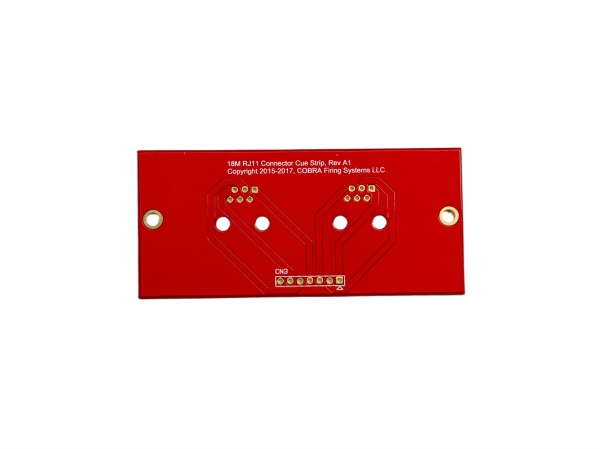

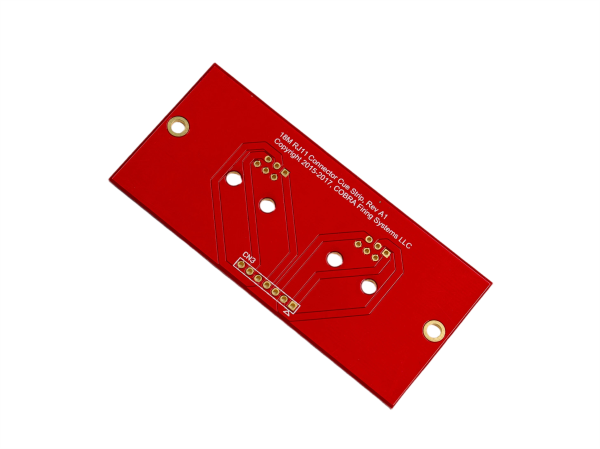

Quick-Turn Prototype PCBA Assembly Service with Full BOM Procurement

From Concept to Functional PCBA in 5-15 Days. We Handle All Materials Procurement. You Focus on Innovation.

Four Key Advantages:

 Rapid Turnaround
Prototype delivery in as fast as 5 working days from design approval.

 Full BOM Procurement
End-to-end component sourcing. No supplier coordination headaches.

 Professional Assembly
Mixed SMT & THT capabilities, from 01005 micro-components to large connectors.

 Quality Assured
Comprehensive testing: AOI, X-Ray, and functional testing included.

Service：

Quick-Turn PCBA Prototype Process:

Step 1: Design & Validation

• Accepts all standard design files (Gerber, BOM, Pick & Place)

• Free DFM analysis to ensure manufacturability

• Design feedback and optimization suggestions within 24 hours

Step 2: Complete BOM Procurement

• Our Commitment:

• Global component supply chain network

• Genuine parts guarantee with full traceability

• Proactive shortage alerts with alternative solutions

• Bulk pricing advantages extended to prototype orders

• Procurement Coverage:

• Active & passive components

• ICs & microcontrollers

• Connectors & interfaces

• Specialized & hard-to-find parts

Step 3: High-Precision PCBA Assembly

• SMT Placement: ±0.03mm accuracy, 01005 capability

• Through-Hole: Manual & automated insertion

• Soldering: Lead-free/leaded options, RoHS compliant

• Complex packages: BGA, QFN, fine-pitch IC expertise

Step 4: Comprehensive Testing & Inspection

• Automated Optical Inspection (AOI)

• X-Ray Inspection (for hidden solder joints)

• In-Circuit Test (ICT)

• Custom Functional Test (FCT) development

• Environmental Stress Screening (optional)

Technical Specifications：

Manufacturing Capabilities:

Assembly Line:

• SMT Configuration: High-speed + precision flexible placers

• Daily Capacity: Up to 3,000,000 components

• Solder Paste: Full auto vision-aligned printers

• Reflow: 10-zone nitrogen atmosphere ovens

• Dispensing: Precision glue & epoxy applications

Lead Times：

Rapid Turnaround Options:

• Super Express: 5-7 working days (after design approval)

• Express: 7-10 working days

• Standard: 10-15 working days

Delivery Package Includes:

1. Fully assembled PCBA boards

2. Complete test reports

3. BOM procurement list & authenticity certificates

4. Process documentation & manufacturability recommendations

Target Industries & Applications

Serving Industries:

• Consumer Electronics

• Industrial Controls

• IoT Devices

• Medical Electronics

• Automotive Electronics

• Telecommunications

• Smart Home Products

Typical Applications:

• New product prototype validation

• Low-volume pilot runs (1-500 pcs)

• Design Verification Testing (DVT)

• Engineering samples

• Pre-production batches

Quality Assurance System

Certifications & Standards:

• ISO 9001:2015 Quality Management System

• IPC-A-610 Class 2/3 workmanship standards

• ESD Control: ANSI/ESD S20.20 compliant

• Full traceability system

Quality Checkpoints:

• Incoming QC (IQC): 100% component verification

• In-Process QC (IPQC): 55 critical process checkpoints

• Final QC (FQC): Multi-dimensional finished goods inspection

8. Frequently Asked Questions

Q1: What exactly is included in Full BOM Procurement?
A: We manage the entire process: component selection advice, supplier qualification, purchasing, inspection, and inventory management. You simply provide the BOM.

Q2: How do you ensure components are genuine?
A: We source exclusively from authorized distributors and franchised partners, provide original certificates, and maintain full lot traceability. Our in-house lab performs incoming inspection.

Q3: What design files do you need?
A: We require Gerber files, BOM, centroid file, and schematics. Our engineering team will perform a complimentary DFM analysis and provide feedback.

Q4: Is there a minimum order quantity (MOQ)?
A: No MOQ for prototyping. Single-board orders are accepted.

9. Call to Action

Get Your PCBA Quote Now:

1. Upload your design files or send to raosumei@szhpcb.com

2. Receive detailed quote & lead time within 24 hours

3. Parallel procurement & production starts upon PO

4. On-time delivery with professional packaging & tracking

Specializing in Quick-Turn PCBA for 15+ Years · Serving 3000+ Innovative Companies Worldwide · Do It Right, Deliver Fast
