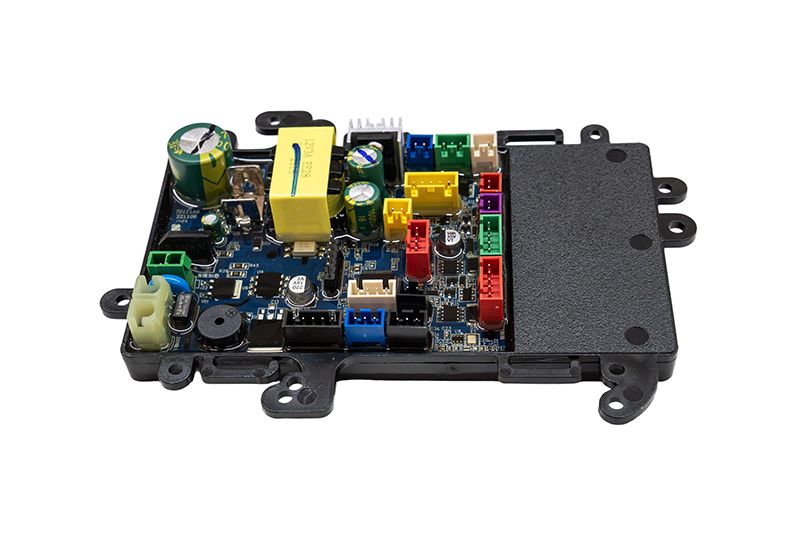

Electronic Bidet Toilet PCB Control Board PCBA Module
SZH's smart toilet control board PCBA is designed for premium electronic bidets, integrating seat heating, energy-saving algorithms, and multi-layer safety protection for enhanced user experience. With over 10 years of expertise, we provide ODM/OEM solutions for global brands, leveraging advanced R&D in precision molds and vertically integrated supply chains for fast delivery and cost efficiency. Annual production capacity exceeds 2 million units, SZH provide flexible customization, empowering clients to lead the smart bathroom market.
- SZH
- China
- Information
Product Overview
This cost-effective smart toilet control board provides essential automation functions for entry-level smart toilets. Featuring zero-pressure flushing, microwave sensing, automatic lid opening, foot-controlled lid/seat lifting/flushing, and seat heating, it delivers core smart experiences while significantly reducing production costs and installation complexity. Ideal for traditional toilet upgrades and budget-friendly smart toilet solutions. Provide cost-effective control solutions for smart toilet manufacturers, helping customers achieve basic intelligent functions at a lower cost.
Core Features
1. Zero-Pressure Flushing System
Minimum working pressure: 0.03MPa
Silent operation (<50dB)
Auto water shortage protection
2. Automatic Lid Opening
Microwave Radar-activated operation
Soft-close mechanism
Anti-pinch safety protection
3. Foot-Controlled Lid/Seat Lifting
Capacitive sensing technology
0.5s response time
Pressure-sensitive operation
4. Heated Seat System
4 temperature levels (35°C/40°C/45°C)
Auto energy-saving mode
Key Advantages
✅ 40% Cost Reduction – Streamlined for affordability
✅ Plug-and-Play Installation – Standardized connectors
✅ Industrial-Grade Reliability – Moisture-resistant PCB
Custom Smart Toilet Mainboard PCBA
Modular Function Design
l Core Functions (Rapid Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
l Advanced Customization
- Electronic Extensions:
• IoT Control: APP/Wireless remote
• HMI: Smart display + Voice feedback
• Health: urinalysis (interface reserved)
End-to-End Development
Vertical Manufacturing Advantage:
• Mold R&D: Rapid structural development (solving deformation/leakage)
• Electro-mechanical integration: Unified PCBA and heating module design
• Batch production pilot: Internal SMT+ assembly to ensure rapid production
Competitive Benchmarking
Traditional Development Pain Points | Our Solutions | Technical Support |
Excessive functional integration leads to slow development | Modular design + pre-reserved interfaces | patent portfolio |
Misalignment in mechanical and electrical design | Parallel electro-mechanical co-development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validated architecture (50% test time reduction) | 10-year ODM empirical database |
Transform your smart toilet concept into a market-ready product. Welcome to contact us today to provide personalized solutions with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
