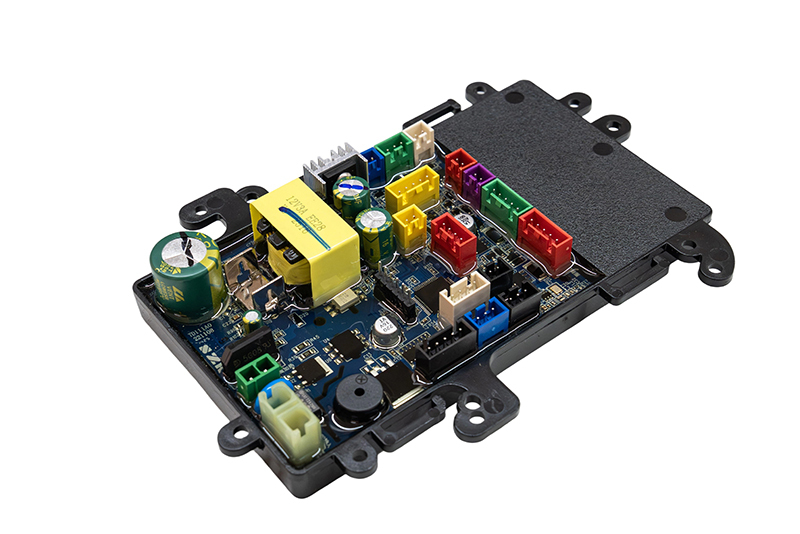

Intelligent WC Bathroom Electronics Board Motherboard
SZH's smart toilet control board PCBA is designed for premium electronic bidets, integrating seat heating, energy-saving algorithms, and multi-layer safety protection for enhanced user experience. With over 10 years of expertise, we provide ODM/OEM solutions for global brands, leveraging advanced R&D in precision molds and vertically integrated supply chains for fast delivery and cost efficiency. Annual production capacity exceeds 2 million units, SZH provide flexible customization, empowering clients to lead the smart bathroom market.
- SZH
- China
- Information
Product Overview
This product is an economical and practical smart toilet control mainboard, integrating five core functions, and is specially designed for smart toilets that pursue cost performance
Key Features
Intelligent Seat Heating
•4 adjustable temperature levels
• Energy-saving auto standby mode
• Quick-heat technology reaches comfort temperature in seconds
Hands-Free Operation
• 24GHz microwave sensor for touchless lid opening
• Foot-activated seat lifting with capacitive sensing
• IP65 waterproof rating for bathroom environments
Reliable Flushing System
• Works with low water pressure (0.03MPa minimum)
• Dual flush options (1.5L/3.0L) for water conservation
• Silent operation below 50dB
Technical Specifications
| Parameter | Value |
|---|---|
| Power Input | AC 110V-220V±10% 50/60Hz |
| Max Power | 35W |
| Waterproof | IPX5 |
| Warranty | 2 years |
Why Choose Our Control Board?
✅ 30% more affordable than full-featured alternatives
✅ Easy installation with plug-and-play design
✅ Export-ready with international certifications
✅ Reliable performance using industrial-grade components
Custom Smart Toilet Mainboard PCBA
Modular Function Design
l Core Functions (Rapid Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
|
l Advanced Customization
- Electronic Extensions:
• IoT Control: APP/Wireless remote
• HMI: Smart display + Voice feedback
• Health: urinalysis (interface reserved)
- Mechanical Synergy:
• Auto-lid motor drive optimization
• Precision foam generator control
End-to-End Development
Vertical Manufacturing Advantage:
• Mold R&D: fast structural development (solves deformation/leaks)
• Electro-mechanical integration: Unified PCBA & heating module design
• Pilot to mass production: in-house SMT+assembly to ensure fast production
Competitive Benchmarking
Traditional Development Pain Points | Our Solutions | Technical Support |
Slow development due to excessive feature integration | Modular design + pre-reserved interfaces | patent portfolio |
Electro-mechanical design misalignment | Parallel electro-mechanical co-development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validated architecture (50% test time reduction) | 10-year ODM empirical database |
Transform your smart toilet concept into a market-ready product. Welcome to contact with us today for a personalized proposal with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
