Instant Heating Module: Zero-Wait Rapid Warming System For Smart Bidet
SZH's smart toilet control board PCBA is designed for premium electronic bidets, integrating seat heating, energy-saving algorithms, and multi-layer safety protection for enhanced user experience. With over 10 years of expertise, we provide ODM/OEM solutions for global brands, leveraging advanced R&D in precision molds and vertically integrated supply chains for fast delivery and cost efficiency. Annual production capacity exceeds 2 million units, SZH provide flexible customization, empowering clients to lead the smart bathroom market.
- SZH
- China
- Information
I. Product Overview
This instant water heater for smart toilets is a professional-grade bathroom appliance featuring advanced flash-heating technology. The unit combines a high-strength white engineering plastic housing with an integrated high-efficiency heating system and precision circuit control module.
Key Feaures:

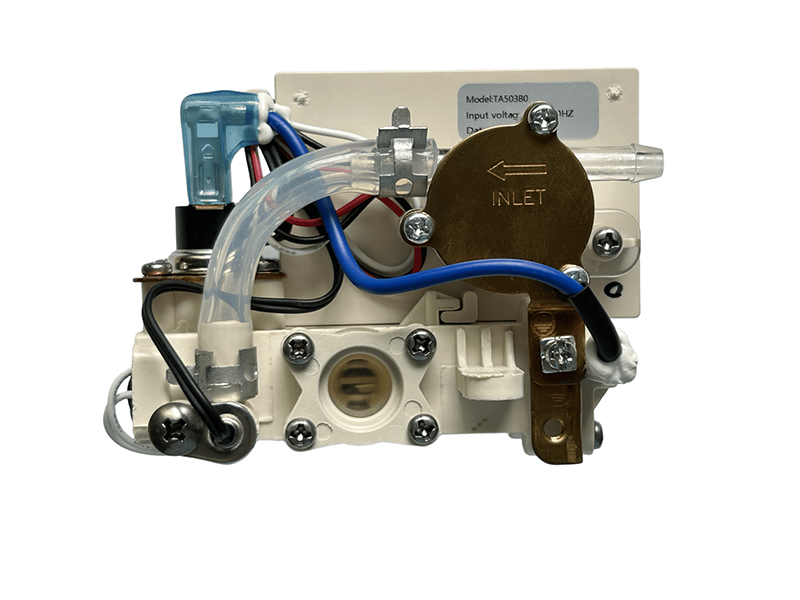

✅ Transparent PVC tubing for clear water flow monitoring
✅ Color-coded wiring for foolproof electrical connections
✅ "INLET" markings on metal parts for correct installation
✅ Precision PCB component layout for intelligent temperature control
II. Core System Analysis
Waterway System
Inlet Structure:
• Dedicated metal interface
• Food-grade transparent PVC tubing
• Leak-proof sealing designOutlet Control:
• Multi-channel flow distribution
• High-temperature resistant piping (90℃ continuous operation)
Circuit System
Main Control Board:
• 4-layer PCB design
• 32-bit microprocessor
• Precision SMD components
III. Key Technical Parameters
Performance Specifications
Input Voltage: AC 220V 50Hz
Heating Power: 2800W (peak)
Temperature Control Accuracy: ±0.5℃
Flow Rate Range: 200-800ml/min
Protection System
⚡ Overcurrent protection
⚡ Double insulation design
Environmental Adaptability
Operating Temperature: 0-60℃
Protection Rating: IPX4
IV. Product Advantages
User-Friendly Design
? Modular layout – Easy maintenance
? Foolproof connectors – Prevents misinstallation
? Quick-release structure – Simplifies disassembly
Smart Features
? Instant heating – No preheating required
? Stable temperature control – ±0.5℃ precision
? Energy efficient – 95% thermal efficiency
Custom Smart Toilet Mainboard PCBA
Modular Function Design
l Core Functions (Rapid Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
|
l Advanced Customization
- Electronic Extensions:
• IoT Control: APP/Wireless remote
• HMI: Smart display + Voice feedback
• Health: urinalysis (interface reserved)
- Mechanical Synergy:
• Auto-lid motor drive optimization
• Precision foam generator control
End-to-End Development
Vertical Manufacturing Advantage:
• Mold R&D: fast structural development (solves deformation/leaks)
• Electro-mechanical integration: Unified PCBA & heating module design
• Pilot to mass production: in-house SMT+assembly to ensure fast production
Competitive Benchmarking
Traditional Development Pain Points | Our Solutions | Technical Support |
slow development due to excessive feature integration | Modular design + pre-reserved interfaces | patent portfolio |
Electro-mechanical design misalignment | Parallel electro-mechanical co-development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validated architecture (50% test time reduction) | 10-year ODM empirical database |
Transform your smart toilet concept into a market-ready product. Welcome to contact with us today for a personalized proposal with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
