Low-Energy Instant Heater Modules: Temperature-Stable Smart Toilet Heating Components
SZH's smart toilet control board PCBA is designed for premium electronic bidets, integrating seat heating, energy-saving algorithms, and multi-layer safety protection for enhanced user experience. With over 10 years of expertise, we provide ODM/OEM solutions for global brands, leveraging advanced R&D in precision molds and vertically integrated supply chains for fast delivery and cost efficiency. Annual production capacity exceeds 2 million units, SZH provide flexible customization, empowering clients to lead the smart bathroom market.
- SZH
- China
- Information
I. Product Overview

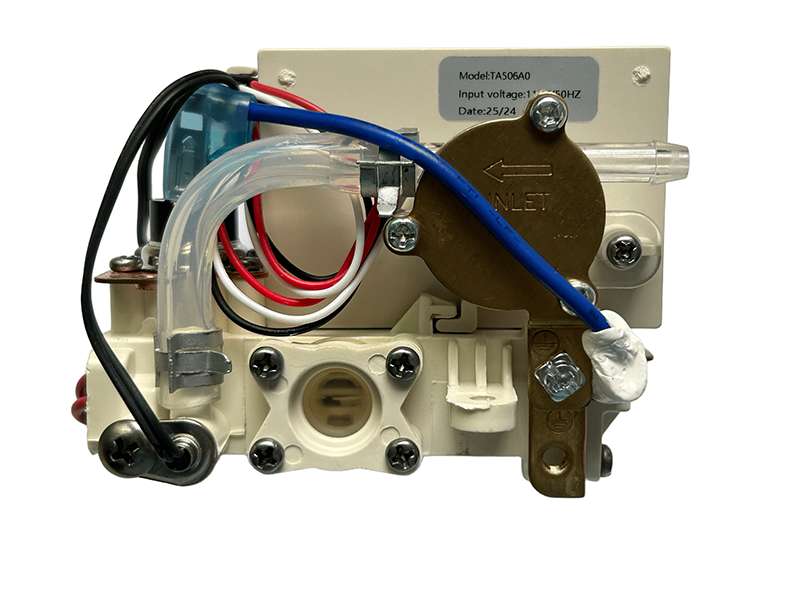

This instant water heater for smart toilets is a professional-grade heating device featuring advanced flash-heating technology. Equipped with an integrated high-efficiency heating system and transparent PVC water pipes, it delivers rapid and stable hot water supply, eliminating the drawbacks of traditional tank heaters—long wait times and temperature fluctuations.
II. Core System Analysis
Power Configuration: 110V/50Hz
Thermal Efficiency: ≥95%
Heat-up Speed: 25°C temperature rise in ≤3 sec
Housing Material: Flame-retardant ABS plastic
Waterway System: Food-grade transparent PVC tubing
Electrical Ports: Color-coded wiring (red/black/blue)
Dimensions: Compatible with standard smart toilet installations
III. Key Technical Parameters
Performance Metrics
Operating Voltage: AC 110V
Frequency: 50Hz
Max. Output Temp.: 55°C
Flow Rate Range: 200–600ml/min
Safety Features
Insulation Class: Class I
Waterproof Rating: IPX4
Overheat Protection: Auto shutoff ≥65°C
Dry-Fire Protection: Flow sensor-activated
IV. Product Advantages
✅ Instant Heating – No preheating required
✅ Stable Temperature – ±0.5°C precision control
✅ Quiet Operation – <40dB noise level
✅ 5-Layer Safety Protection
✅ Water-electric separation
✅ Leakage-proof design
✅ Standby power <1W
✅ 30% energy savings vs. traditional heaters
✅ RoHS environmental compliance
Custom Smart Toilet Mainboard PCBA
Modular Function Design
l Core Functions (Rapid Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
|
l Advanced Customization
- Electronic Extensions:
• IoT Control: APP/Wireless remote
• HMI: Smart display + Voice feedback
• Health: urinalysis (interface reserved)
- Mechanical Synergy:
• Auto-lid motor drive optimization
• Precision foam generator control
End-to-End Development
Vertical Manufacturing Advantage:
• Mold R&D: fast structural development (solves deformation/leaks)
• Electro-mechanical integration: Unified PCBA & heating module design
• Pilot to mass production: in-house SMT+assembly to ensure fast production
Competitive Benchmarking
Traditional Development Pain Points | Our Solutions | Technical Support |
slow development due to excessive feature integration | Modular design + pre-reserved interfaces | patent portfolio |
Electro-mechanical design misalignment | Parallel electro-mechanical co-development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validated architecture (50% test time reduction) | 10-year ODM empirical database |
Transform your smart toilet concept into a market-ready product. Welcome to contact with us today for a personalized proposal with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
