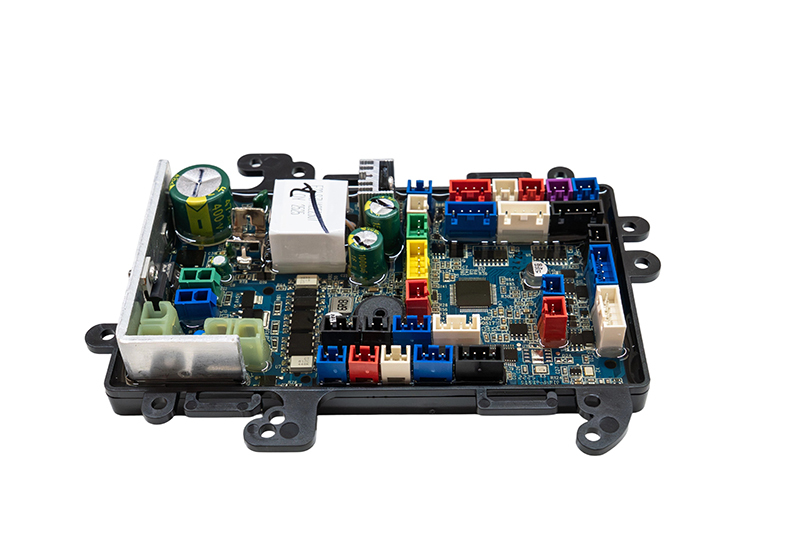

Advanced Bidet Seat Toilet Controller PCB Electronics Assembly
SZH's smart toilet control board PCBA is designed for premium electronic bidets, integrating seat heating, energy-saving algorithms, and multi-layer safety protection for enhanced user experience. With over 10 years of expertise, we provide ODM/OEM solutions for global brands, leveraging advanced R&D in precision molds and vertically integrated supply chains for fast delivery and cost efficiency. Annual production capacity exceeds 2 million units, SZH provide flexible customization, empowering clients to lead the smart bathroom market.
- SZH
- China
- Information
Product Overview
This flagship smart toilet control board integrates cutting-edge intelligent bathroom technologies. Featuring a high-performance processor and advanced sensor systems, it delivers eight core functions including intelligent cleaning, warm air drying, microwave sensing, automatic lid opening, foot-controlled functions, seat heating, AI voice control, and zero water pressure flushing - redefining luxury bathroom experiences.
Key Features
Dual-mode washing: Independent posterior/feminine wash nozzles with 5-level water pressure adjustment (0.08-0.15MPa)
Temperature control: Precise 30-45℃±0.5℃ water temperature with pulsating massage mode
Self-cleaning: UV + electrolyzed water dual sterilization system with auto pre/post-use cleaning
3 temperature levels: 40℃/45℃/50℃ with variable speed control
Smart memory: Automatically saves user preferences for one-touch recall
4 level heating: 30-45℃ with 4 adjustable levels
Energy saving: Automatically reduces temperature when unoccupied
Smart Interaction
Microwave Sensing Technology
60GHz mmWave radar
0.1s ultra-fast response
30-100cm adjustable detection range
Penetrates 5mm acrylic materials
AI Voice Control
Bilingual Chinese/English support
95% recognition accuracy
20+ offline voice commands
Foot Sensor Control
0.3s quick response
Zero Water Pressure Flushing
Works at minimum 0.02MPa water pressure
Adjustable flow rate (1.2-2.5L/flush)
Full/half flush options
?️ Comprehensive Protection
10ms emergency power cutoff
Triple temperature monitoring
Automatic water shortage detection
Independent port short-circuit protection
Custom Smart Toilet Mainboard PCBA
Modular Function Design
l Core Functions (Rapid Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
|
l Advanced Customization
- Electronic Extensions:
• IoT Control: APP/Wireless remote
• HMI: Smart display + Voice feedback
• Health: urinalysis (interface reserved)
- Mechanical Synergy:
• Auto-lid motor drive optimization
• Precision foam generator control
End-to-End Development
Vertical Manufacturing Advantage:
• Mold R&D: fast structural development (solves deformation/leaks)
• Electro-mechanical integration: Unified PCBA & heating module design
• Pilot to mass production: in-house SMT+assembly to ensure fast production
Competitive Benchmarking
Traditional Development Pain Points | Our Solutions | Technical Support |
Slow development due to excessive feature integration | Modular design + pre-reserved interfaces | patent portfolio |
Electro-mechanical design misalignment | Parallel electro-mechanical co-development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validated architecture (50% test time reduction) | 10-year ODM empirical database |
Transform your smart toilet concept into a market-ready product. Welcome to contact with us today for a personalized proposal with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
