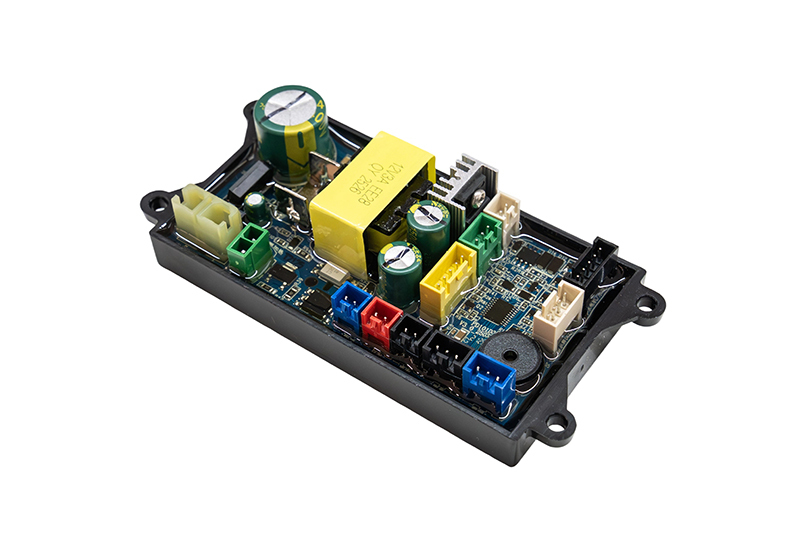

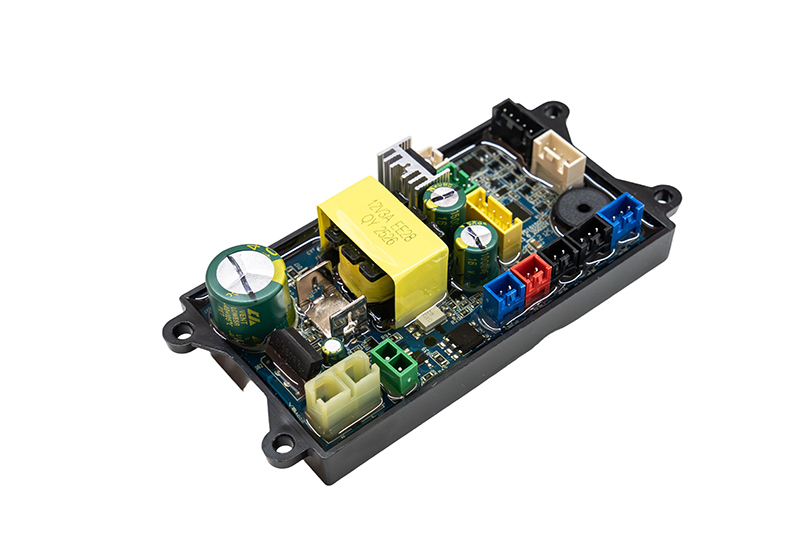

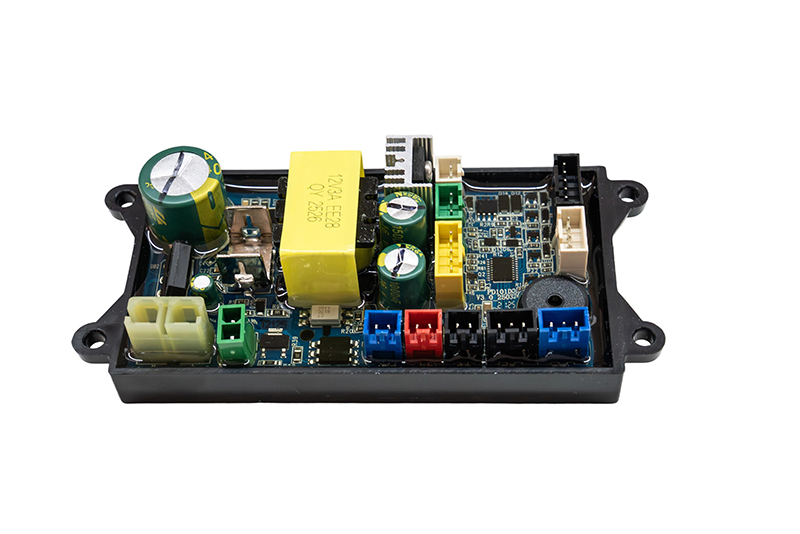

Energy Efficient Elderly-friendly Bidet Motherboard PCBA
SZH's smart toilet control board PCBA is designed for premium electronic bidets, integrating seat heating, energy-saving algorithms, and multi-layer safety protection for enhanced user experience. With over 10 years of expertise, we provide ODM/OEM solutions for global brands, leveraging advanced R&D in precision molds and vertically integrated supply chains for fast delivery and cost efficiency. Annual production capacity exceeds 2 million units, SZH provide flexible customization, empowering clients to lead the smart bathroom market.
- SZH
- China
- Information
1. Product Overview
This product is a smart toilet control motherboard compliant with China’s mandatory 3C certification standards. It utilizes FR-4 epoxy fiberglass A-grade laminate meeting RoHS/REACH environmental requirements, with a UL94 V-0 flame resistance rating. The motherboard supports functions including seat heating, zero-water-pressure flushing, foot-sensing auto-flush, power-outage flushing, and display.
Advantages
High integration, compact size
Stable performance, comprehensive functionality
Compatible with multiple smart toilet models
2. Technical Specifications
2.1 Electrical Parameters
2.2 Environmental & Compliance
3. Usage Precautions
During assembly and operation, observe the following:
ESD Protection: Wear an anti-static wristband or gloves during installation.
Cable Handling: Avoid excessive force when connecting/disconnecting wires.
Voltage Verification: Confirm input voltage before power connection.
Moisture Prevention: Install the motherboard away from water paths; seal all ports.
Cable Management: Separate and secure high-voltage/low-voltage wiring.
Power Safety: Always disconnect power before reconfiguring or servicing.
Certified Components: Use national-standard leakage protection switches and plugs for reliability.
Custom Smart Toilet Mainboard PCBA
Modular Function Design
l Core Functions (Rapid Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
|
l Advanced Customization
- Electronic Extensions:
• IoT Control: APP/Wireless remote
• HMI: Smart display + Voice feedback
• Health: urinalysis (interface reserved)
Competitive Benchmarking
Traditional Development Pain Points | Our Solutions | Technical Support |
slow development due to excessive feature integration | Modular design + pre-reserved interfaces | patent portfolio |
Electro-mechanical design misalignment | Parallel electro-mechanical co-development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validated architecture (50% test time reduction) | 10-year ODM empirical database |
Transform your smart toilet concept into a market-ready product. Welcome to contact with us today for a personalized proposal with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
