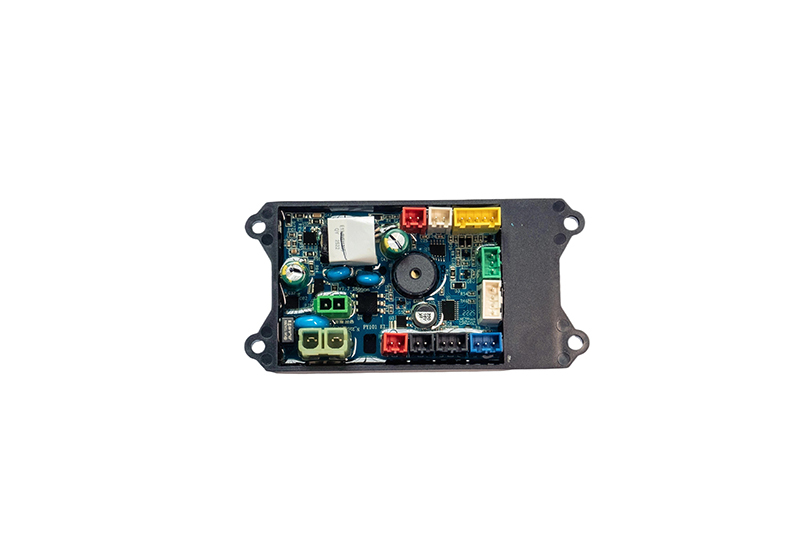

Intelligent Auto-flush PCB System PCBA Motherboard
SZH's smart toilet control board PCBA is designed for premium electronic bidets, integrating seat heating, energy-saving algorithms, and multi-layer safety protection for enhanced user experience. With over 10 years of expertise, we provide ODM/OEM solutions for global brands, leveraging advanced R&D in precision molds and vertically integrated supply chains for fast delivery and cost efficiency. Annual production capacity exceeds 2 million units, SZH provide flexible customization, empowering clients to lead the smart bathroom market.
- SZH
- China
- Information
1. Product Overview
This product is an economical control mainboard for smart toilets, integrating four basic functions: multi-color ambient lighting, seat heating, foot-sensing flushing, and night light illumination. It adopts a low-power design and modular structure, making it suitable for entry-level smart toilet upgrade solutions.
Key Features:
✔ Budget-friendly - Essential functions at minimal cost
✔ Customizable Lighting - ambient light
✔ Instant Comfort - Heats to 40°C in 3 minutes
✔ Reliable Protection - Over-current/short-circuit safeguards
2. Technical Specifications
2.1 Electrical Parameters
2.2 Functional Modules
3. Functional Details
3.1 Lighting System
Ambient Light:
Modes: Static/Breathing/Color fading
Color cycling via button presses
Night Light:
Motion-activated (1.5m range)
Configurable timeout (15/30/60s)
3.2 Heating Control
4 temperature levels (35°C/38°C/42°C)
Auto shut-off after 20 minutes of inactivity
3.3 Foot-sensing Flush
Waterproof sensor pad (ceramic surface mount)
Anti-false trigger: >0.3s continuous detection
Custom Smart Toilet Mainboard PCBA
Modular Function Design
l Core Functions (Rapid Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
|
l Advanced Customization
- Electronic Extensions:
• IoT Control: APP/Wireless remote
• HMI: Smart display + Voice feedback
• Health: urinalysis (interface reserved)
- Mechanical Synergy:
• Auto-lid motor drive optimization
• Precision foam generator control
End-to-End Development
Vertical Manufacturing Advantage:
• Mold R&D: fast structural development (solves deformation/leaks)
• Electro-mechanical integration: Unified PCBA & heating module design
• Pilot to mass production: in-house SMT+assembly to ensure fast production
Competitive Benchmarking
Traditional Development Pain Points | Our Solutions | Technical Support |
slow development due to excessive feature integration | Modular design + pre-reserved interfaces | patent portfolio |
Electro-mechanical design misalignment | Parallel electro-mechanical co-development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validated architecture (50% test time reduction) | 10-year ODM empirical database |
Transform your smart toilet concept into a market-ready product. Welcome to contact with us today for a personalized proposal with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
