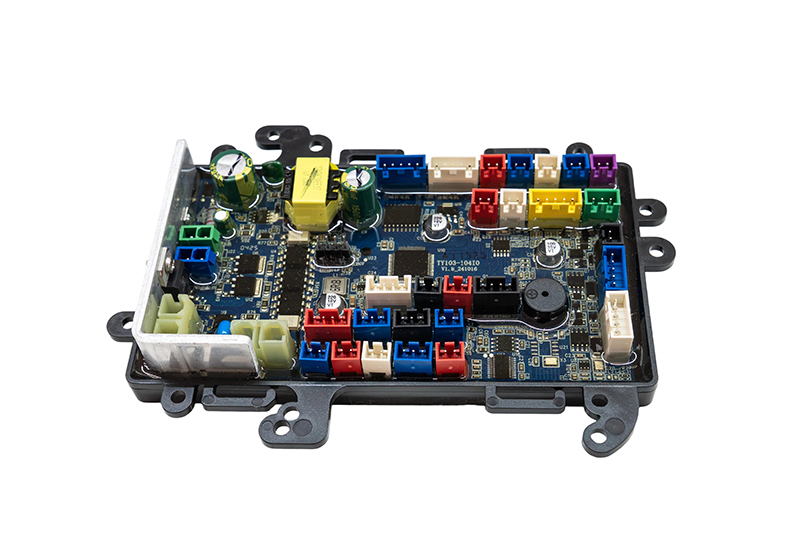

OEM Intelligent Toilet Control Circuit Board Electronics Bidet Seat
SZH's smart toilet control board PCBA is designed for premium electronic bidets, integrating seat heating, energy-saving algorithms, and multi-layer safety protection for enhanced user experience. With over 10 years of expertise, we provide ODM/OEM solutions for global brands, leveraging advanced R&D in precision molds and vertically integrated supply chains for fast delivery and cost efficiency. Annual production capacity exceeds 2 million units, SZH provide flexible customization, empowering clients to lead the smart bathroom market.
- SZH
- China
- Information
1. Detailed Feature Breakdown
Advanced Sensing System
Radar Auto-Open (Upgraded)
60GHz mmWave radar chip
Detection range: 15-120cm (APP adjustable)
Multi-person tracking with <0.01% false trigger rate
Penetrates 5mm acrylic panels
Foot Sensor Control
Foot-Sensing Flush:
• ±1mm detection accuracy
• IP69K waterproof rating (withstands pressure washing)
• 0.3s response timeFoot-Operated Lid: Pressure-sensitive (light/heavy step differentiation)
Comfort System
Seat Heating:
3s warm-up、4-level adjustment (30℃-45℃)
Smart energy saving:
• Motion-activated operation
• Auto -2℃ reduction at night
Multi-Function Cleaning System
Smart Control System
Voice Interaction
20+ offline voice commands
Voiceprint recognition for multi-user differentiation
3. Technical Specifications
Electrical Parameters
Environmental Tolerance
Operating temp: -30℃～60℃
Storage temp: -40℃～85℃
Humidity: 20%～95% RH (non-condensing)
4. Certifications
Safety: GB4706.1-2024, IEC60335
Wireless: SRRC/CE-RED/FCC ID
Environmental: RoHS2.0, REACH SVH
5. Target Applications
▶ Luxury residential projects
▶ Five-star hotels
▶ Medical/rehabilitation facilities
▶ High-end OEM partnerships
Custom Smart Toilet Mainboard PCBA
Modular Function Design
l Core Functions (Rapid Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
|
l Advanced Customization
- Electronic Extensions:
• IoT Control: APP/Wireless remote
• HMI: Smart display + Voice feedback
• Health: urinalysis (interface reserved)
- Mechanical Synergy:
• Auto-lid motor drive optimization
• Precision foam generator control
End-to-End Development
Vertical Manufacturing Advantage:
• Mold R&D: fast structural development (solves deformation/leaks)
• Electro-mechanical integration: Unified PCBA & heating module design
• Pilot to mass production: in-house SMT+assembly to ensure fast production
Competitive Benchmarking
Traditional Development Pain Points | Our Solutions | Technical Support |
slow development due to excessive feature integration | Modular design + pre-reserved interfaces | patent portfolio |
Electro-mechanical design misalignment | Parallel electro-mechanical co-development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validated architecture (50% test time reduction) | 10-year ODM empirical database |
Transform your smart toilet concept into a market-ready product. Welcome to contact with us today for a personalized proposal with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
