Programmable AI Toilet Electronics Controller PCB Board Assembly
SZH's smart toilet control board PCBA is designed for premium electronic bidets, integrating seat heating, energy-saving algorithms, and multi-layer safety protection for enhanced user experience. With over 10 years of expertise, we provide ODM/OEM solutions for global brands, leveraging advanced R&D in precision molds and vertically integrated supply chains for fast delivery and cost efficiency. Annual production capacity exceeds 2 million units, SZH provide flexible customization, empowering clients to lead the smart bathroom market.
- SZH
- China
- Information
1. Product Overview

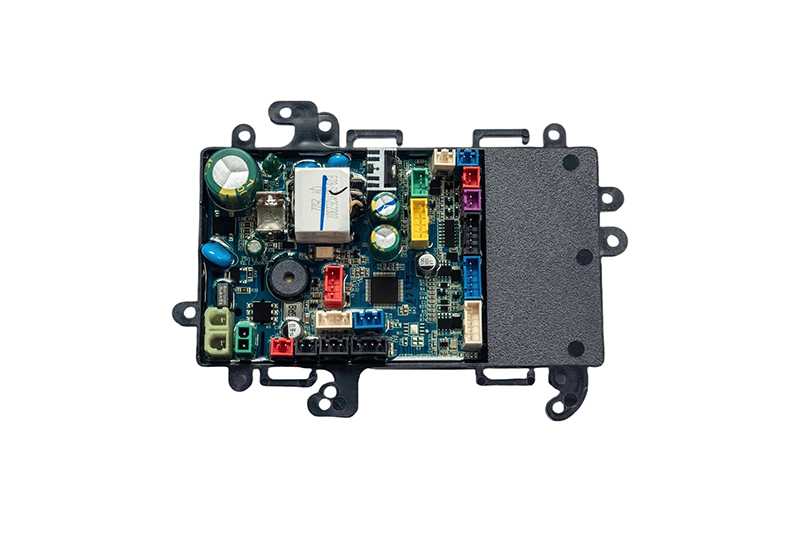

This multi-functional simplified control mainboard integrates radar-sensing auto-lid/seat, intelligent seat heating, foot sensor control (flush + lid opening), and soft night light, designed for mid-to-high-end smart toilets. Featuring industrial waterproofing and low-power design.
Key Advantages:
✔ Touchless Control: 24GHz mmWave radar (more accurate than IR, anti-interference)
✔ Foot-sensing Control: flush/ open lid
✔ Energy Efficiency: 4-stage seat heating (30°C-45°C) with timer
✔ Robust Protection: IPX5 full-board potting, triple safeguards (over-current/voltage/temp)
2. Technical Specifications
2.1 Electrical Parameters
| Parameter | Specification |
|---|---|
| Input Voltage | AC 220V ±10% (50/60Hz) |
| Max Power | ≤35W (incl. radar & heating) |
| Standby Consumption | <0.8W |
2.2 Functional Modules
| Module | Detail |
|---|---|
| Radar Sensor | 24GHz mmWave (30-80cm adjustable) |
| Seat Heating | Carbon fiber film (60W, ±1°C) |
| Foot Sensor | Capacitive (IP67 waterproof) |
| Night Light | 2x LEDs (3000K, dimmable) |
2.3 Mechanical & Environmental
Dimensions: 105×83×30mm (with heatsink case)
Waterproof: IPX5 (polyurethane potting)
Operating Temp.: -20°C ~ +60°C
3. Functional Details
3.1 Smart Sensing System
Radar Auto-lid/Seat:
Adjustable detection range (30-80cm)
Supports hand-wave triggering
Foot Sensor Control:
First sensor:
Second Sensor:
Third Sensor:
If lid is closed → Open lid
If lid is already open → Trigger flush directly
Automatically lift seat
Complete flush & close lid automatically
3.2 Temperature Control
4-stage Heating: 30°C/35°C/40°C/45°C
Auto Eco-mode: Reduces to low temp after 30min inactivity
3.3 Safety Features
Radar Anti-jamming: Filters environmental noise
Isolated Design: Physical separation of heating/control circuits
4. Certifications
Safety: GB4706.1-2024, GB/T 23131-2019
Wireless: SRRC (Model: XX-24G-RD01)
Compatibility: Directly interfaces with major toilet motors/pumps
Custom Smart Toilet Mainboard PCBA
Modular Function Design
l Core Functions (Rapid Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
|
l Advanced Customization
- Electronic Extensions:
• IoT Control: APP/Wireless remote
• HMI: Smart display + Voice feedback
• Health: urinalysis (interface reserved)
- Mechanical Synergy:
• Auto-lid motor drive optimization
• Precision foam generator control

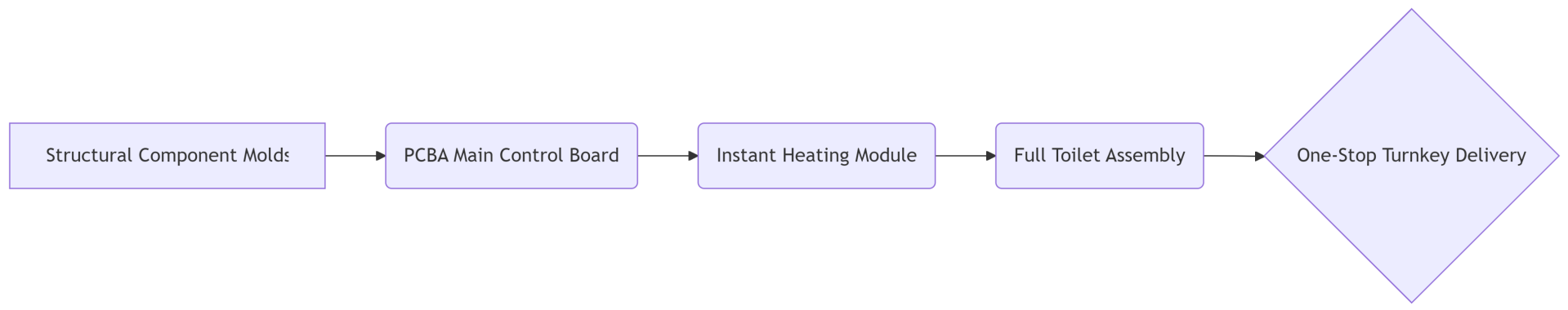

End-to-End Development
Vertical Manufacturing Advantage:
• Mold R&D: fast structural development (solves deformation/leaks)
• Electro-mechanical integration: Unified PCBA & heating module design
• Pilot to mass production: in-house SMT+assembly to ensure fast production
Competitive Benchmarking
Traditional Development Pain Points | Our Solutions | Technical Support |
slow development due to excessive feature integration | Modular design + pre-reserved interfaces | patent portfolio |
Electro-mechanical design misalignment | Parallel electro-mechanical co-development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validated architecture (50% test time reduction) | 10-year ODM empirical database |
Transform your smart toilet concept into a market-ready product. Welcome to contact with us today for a personalized proposal with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
