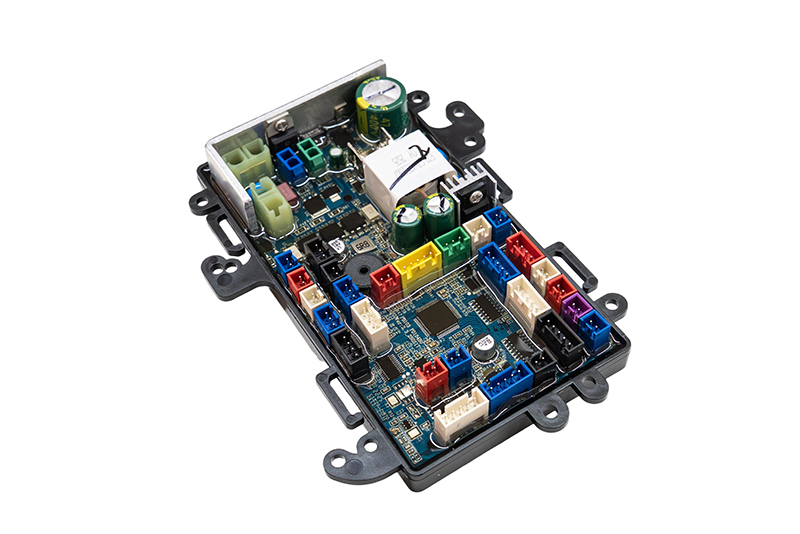

Residential Warm Water Bidet PCBA Motherboard WiFi Circuit Control Board
SZH's smart toilet control board PCBA is designed for premium electronic bidets, integrating seat heating, energy-saving algorithms, and multi-layer safety protection for enhanced user experience. With over 10 years of expertise, we provide ODM/OEM solutions for global brands, leveraging advanced R&D in precision molds and vertically integrated supply chains for fast delivery and cost efficiency. Annual production capacity exceeds 2 million units, SZH provide flexible customization, empowering clients to lead the smart bathroom market.
- Sunthone
- China
- Information
Product Overview
This flagship-grade smart toilet control board integrates the most advanced intelligent bathroom technologies in the industry, manufactured to military-grade standards. It provides a comprehensive control solution for high-end smart toilets, featuring high-performance processors and advanced sensing technologies to deliver exceptional user experience with functions including cleaning, drying, seat heating, microwave sensing, automatic lid opening, foot-controlled seat lifting, AI voice control, and zero water pressure flushing.
Core Features
1. Intelligent Cleaning System
Dual nozzle design (separate posterior/feminine wash nozzles)
5-level water pressure adjustment (0.08-0.15MPa)
Precise water temperature control (30-42℃±0.5℃)
Auto nozzle cleaning (pre/post-use automatic cleaning)
2. Comfort Drying System
3 temperature levels (40℃/45℃/50℃)
Variable speed control
Smart timer (up to 3 minutes)
3. Seat Heating System
4 temperature levels (30-45℃)
Auto energy-saving mode
Technical Specifications
Intelligent Control Systems
1. Microwave Sensing System
60GHz mmWave radar technology
Detection range: 30-100cm adjustable
Response time: <0.1 second
Penetration capability: Through 5mm acrylic panels
2. AI Voice Control System
Supports Chinese/English recognition
20+ offline voice commands
Recognition accuracy: >95%
3. Foot Control System
Capacitive sensing technology
Waterproof rating: IP68
Response time: 0.3 second
Zero Water Pressure Flushing Technology
Minimum working pressure: 0.02MPa
Flush volume: 1.2-2.5L adjustable
Dual flush modes (full/half flush)
Safety Protection Features
Leakage protection (response time <10ms)
Overheat protection (multiple temperature sensors)
Water shortage protection (auto tank level detection)
Short circuit protection (independent port protection
Applications
This product is suitable for:
High-end residential smart toilets
Five-star hotel bathroom systems
Medical/rehabilitation facilities
OEM/ODM for premium bathroom brands
Precautions
Ensure power is disconnected during installation
Professional installation recommended
Regularly check waterproof condition of all interfaces
Avoid using corrosive cleaners
Custom Smart Toilet Mainboard PCBA
Modular Function Design
l Core Functions (Rapid Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
|
l Advanced Customization
- Electronic Extensions:
• IoT Control: APP/Wireless remote
• HMI: Smart display + Voice feedback
• Health: urinalysis (interface reserved)
- Mechanical Synergy:
• Auto-lid motor drive optimization
• Precision foam generator control
End-to-End Development
Vertical Manufacturing Advantage:
• Mold R&D: fast structural development (solves deformation/leaks)
• Electro-mechanical integration: Unified PCBA & heating module design
• Pilot to mass production: in-house SMT+assembly to ensure fast production
Competitive Benchmarking
Traditional Development Pain Points | Our Solutions | Technical Support |
slow development due to excessive feature integration | Modular design + pre-reserved interfaces | patent portfolio |
Electro-mechanical design misalignment | Parallel electro-mechanical co-development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validated architecture (50% test time reduction) | 10-year ODM empirical database |
Transform your smart toilet concept into a market-ready product. Welcome to contact with us today for a personalized proposal with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
