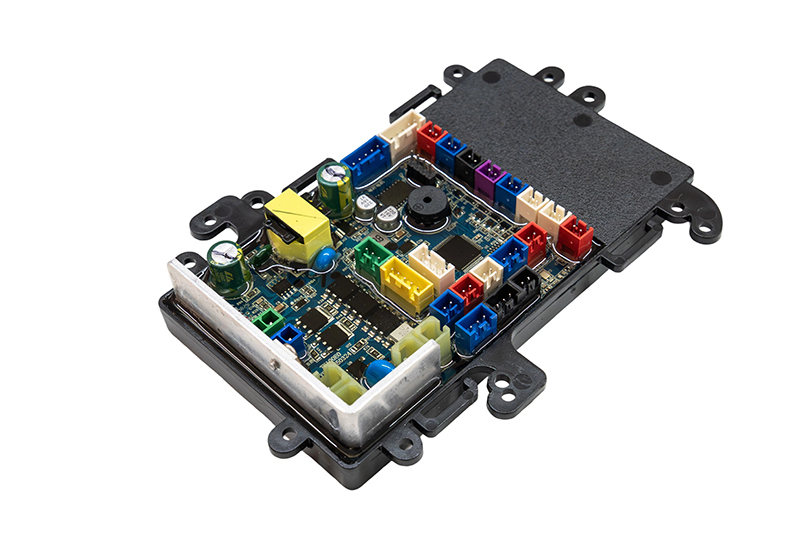

Smart Toilet Bathroom PCB Control Board Assembly
SZH's smart toilet control board PCBA is designed for premium electronic bidets, integrating seat heating, energy-saving algorithms, and multi-layer safety protection for enhanced user experience. With over 10 years of expertise, we provide ODM/OEM solutions for global brands, leveraging advanced R&D in precision molds and vertically integrated supply chains for fast delivery and cost efficiency. Annual production capacity exceeds 2 million units, SZH provide flexible customization, empowering clients to lead the smart bathroom market.
- SZH
- China
- Information
Product Overview
The Smart Toilet Control Mainboard is the intelligent core of modern bathroom systems, integrating advanced pulse control technology with premium comfort features. Designed for global markets, this mainboard enables full smart toilet functionality including heated seating, hygienic washing systems, touchless operation and energy-efficient performance - all through a single, reliable control unit.
Key Features
?️ Intelligent Seat Heating
3-stage temperature adjustment (30°C/38°C/45°C)
Auto-adaptive power saving mode
? Night Light
? Contactless Foot Flush
Infrared induction (5-15cm detection)
? Advanced Cleaning System
Dual Nozzle Design:
40mm posterior wash nozzle
35mm feminine wash nozzle
Instant water heating (35-40°C ±1°C)
Self-cleaning nozzle with UV sterilization
? Warm Air Drying
3-speed adjustable airflow
Temperature range 40-55°C
Automatic shut-off (1-10 mins adjustable)
Technical Specifications
Why Choose Our Mainboard?
✔ Military-Grade Reliability
FR-4 flame retardant PCB with 2oz copper thickness
✔ Smart Water Saving
Auto-adjusts flush volume based on usage patterns
✔ Hygienic Protection
Ag+ antibacterial coating on all water contact parts
✔ Global Compatibility
Supports 100-240V voltage range
✔ Easy Integration
Modular connectors for 30-minute installation
✔ 2-Year Warranty
24/7 technical support available
Custom Smart Toilet Mainboard PCBA
Modular Function Design
l Core Functions (Rapid Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
|
l Advanced Customization
- Electronic Extensions:
• IoT Control: APP/Wireless remote
• HMI: Smart display + Voice feedback
• Health: urinalysis (interface reserved)
- Mechanical Synergy:
• Auto-lid motor drive optimization
• Precision foam generator control
End-to-End Development
Vertical Manufacturing Advantage:
• Mold R&D: fast structural development (solves deformation/leaks)
• Electro-mechanical integration: Unified PCBA & heating module design
• Pilot to mass production: in-house SMT+assembly to ensure fast production
Competitive Benchmarking
Traditional Development Pain Points | Our Solutions | Technical Support |
slow development due to excessive feature integration | Modular design + pre-reserved interfaces | patent portfolio |
Electro-mechanical design misalignment | Parallel electro-mechanical co-development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validated architecture (50% test time reduction) | 10-year ODM empirical database |
Transform your smart toilet concept into a market-ready product. Welcome to contact with us today for a personalized proposal with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
