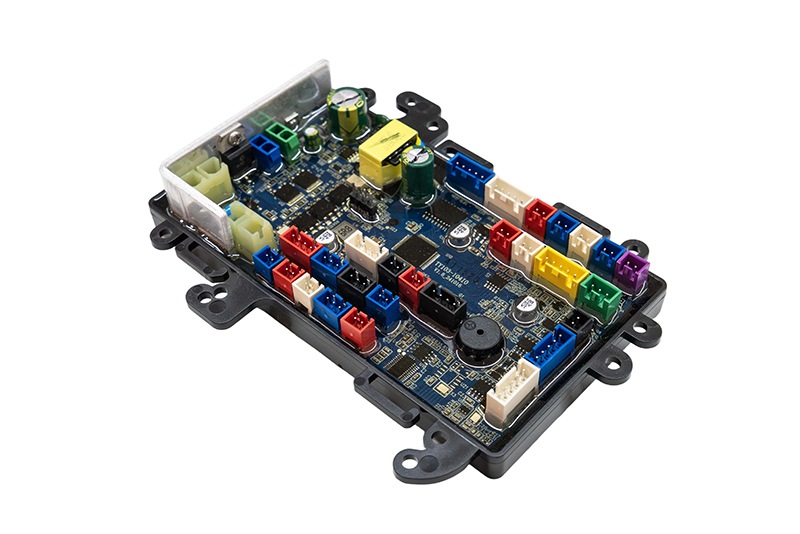

Smart Toilet Master Control Module: Flush/Sensor PCB Assembly
SZH's smart toilet control board PCBA is designed for premium electronic bidets, integrating seat heating, energy-saving algorithms, and multi-layer safety protection for enhanced user experience. With over 10 years of expertise, we provide ODM/OEM solutions for global brands, leveraging advanced R&D in precision molds and vertically integrated supply chains for fast delivery and cost efficiency. Annual production capacity exceeds 2 million units, SZH provide flexible customization, empowering clients to lead the smart bathroom market.
- SZH
- China
- Information
1. Product Overview
Model: TY104 Premium Edition
Dimensions: 160×115×30mm (with heatsink)
Certifications: CE, RoHS, FCC, IPX7 (third-party verified)
Core Advantages:
60GHz mmWave radar with 0.01% false trigger rate
Dual-core ARM Cortex-M7 processor
3-second rapid seat heating (graphene technology)
2. Functional Modules
A. Smart Sensing System
60GHz Radar Auto-Open:
• Detection range: 15-120cm (APP adjustable)
• Penetrates 5mm acrylic/ceramic materials
• Multi-target tracking capabilityFoot Sensors
B. Comfort Control
4-Stage Seat Heating:
◇ 28℃-50℃ (±0.5℃ precision)5 Cleaning Modes:
✓ Standard wash (0.08-0.12MPa)
✓ Pulse massage (10-50Hz adjustable)
✓ Feminine care (aerated water stream)
C. Smart Connectivity
Voice Control: 20+ offline voice commands
Mobile App: Customizable user profiles
3. Technical Highlights
3.1 Advanced Radar Technology
TI IWR6843 60GHz mmWave Sensor
Benefits:
→ 4x more accurate than IR sensors
→ Works through frost/condensation
→ Low-power operation (<1W)
3.2 Safety Systems
Triple Protection Circuit:
Leakage protection (<10ms cutoff)
Over-temperature protection
Dry-fire prevention
3.3 Energy Efficiency
Smart Scheduling:
• Learns usage patterns
• Auto-standby when unoccupied
Custom Smart Toilet Mainboard PCBA
Modular Function Design
l Core Functions (Rapid Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
|
l Advanced Customization
- Electronic Extensions:
• IoT Control: APP/Wireless remote
• HMI: Smart display + Voice feedback
• Health: urinalysis (interface reserved)
- Mechanical Synergy:
• Auto-lid motor drive optimization
• Precision foam generator control

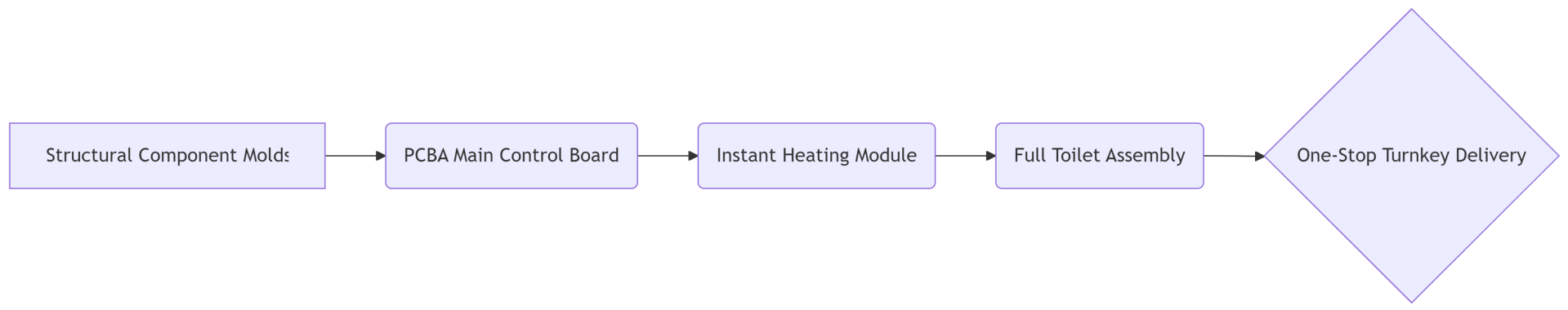

End-to-End Development
Vertical Manufacturing Advantage:
• Mold R&D: fast structural development (solves deformation/leaks)
• Electro-mechanical integration: Unified PCBA & heating module design
• Pilot to mass production: in-house SMT+assembly to ensure fast production
Competitive Benchmarking
Traditional Development Pain Points | Our Solutions | Technical Support |
slow development due to excessive feature integration | Modular design + pre-reserved interfaces | patent portfolio |
Electro-mechanical design misalignment | Parallel electro-mechanical co-development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validated architecture (50% test time reduction) | 10-year ODM empirical database |
Transform your smart toilet concept into a market-ready product. Welcome to contact with us today for a personalized proposal with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
