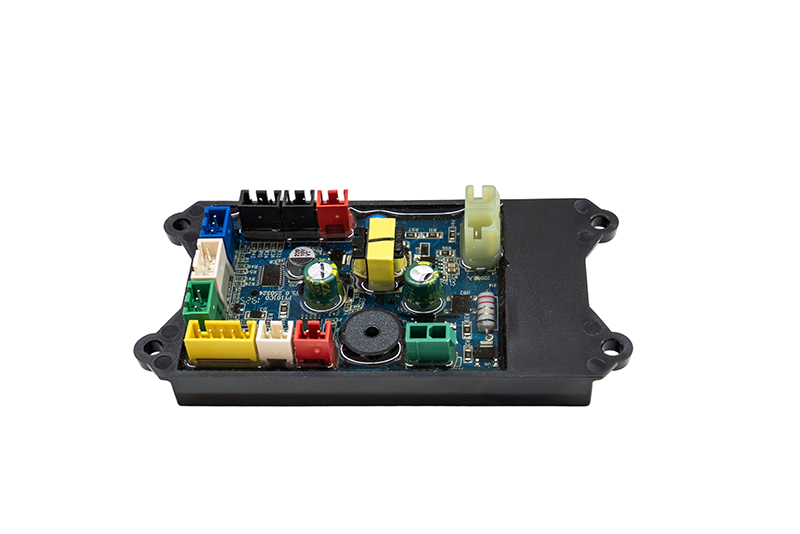

Waterproof Bidet Toilet Electronics PCBA Motherboard
SZH's smart toilet control board PCBA is designed for premium electronic bidets, integrating seat heating, energy-saving algorithms, and multi-layer safety protection for enhanced user experience. With over 10 years of expertise, we provide ODM/OEM solutions for global brands, leveraging advanced R&D in precision molds and vertically integrated supply chains for fast delivery and cost efficiency. Annual production capacity exceeds 2 million units, SZH provide flexible customization, empowering clients to lead the smart bathroom market.
- SZH
- China
- Information
1. Product Overview
The TY101 is an entry-level smart toilet control board featuring seat heating, night light, and foot-sensing flush – designed for budget-friendly smart toilet upgrades.
Key Features:
✔ Cost-effective – Essential functions at lower cost
✔ Easy Installation – Standardized connectors fit most toilets
✔ Reliable – Industrial-grade components, IPX5 waterproof
2. Core Functions
① Seat Heating
4 temperature levels (35°C/38°C/42°C)
Auto energy-saving: Reduces heat after 30 mins of inactivity
② Night Light
3000K warm white LED
Two modes:
Always On (manual switch)
Motion-Activated (auto-on for 15 sec)
③ Foot-Sensing Flush
Capacitive sensor (waterproof & anti-misoperation)
Response time: 0.5 sec
Installation: Adhesive-mounted (side of toilet)
3. Technical Specifications
4. Key Advantages
✅ Smarter than manual buttons:
Touch-free flushing
Auto night light for convenience
✅ More affordable than premium boards:
30% lower cost (only essential functions)
Plug-and-play installation
✅ Durable & Safe:
Moisture-resistant PCB coating
Over-current/short-circuit protection
6. Applications
Budget home smart toilets
Hotel/apartment bathroom upgrades
Retrofitting traditional toilets
Custom Smart Toilet Mainboard PCBA
Modular Function Design
l Core Functions (Rapid Integration)
Heating | Cleaning | Control | Hygiene |
Seat heat | Bidet wash | Power-off flush | Nozzle clean |
Dry heat | Feminine wash | Foot-sense flush | Foam shield |
Temp adjust | Massage spray | Auto flush |
|
l Advanced Customization
- Electronic Extensions:
• IoT Control: APP/Wireless remote
• HMI: Smart display + Voice feedback
• Health: urinalysis (interface reserved)
- Mechanical Synergy:
• Auto-lid motor drive optimization
• Precision foam generator control
End-to-End Development
Vertical Manufacturing Advantage:
• Mold R&D: fast structural development (solves deformation/leaks)
• Electro-mechanical integration: Unified PCBA & heating module design
• Pilot to mass production: in-house SMT+assembly to ensure fast production
Competitive Benchmarking
Traditional Development Pain Points | Our Solutions | Technical Support |
slow development due to excessive feature integration | Modular design + pre-reserved interfaces | patent portfolio |
Electro-mechanical design misalignment | Parallel electro-mechanical co-development | In-house mold center + SMT production lines |
Lengthy certification cycles | Pre-validated architecture (50% test time reduction) | 10-year ODM empirical database |
Transform your smart toilet concept into a market-ready product. Welcome to contact with us today for a personalized proposal with functional prototypes, BOM optimization analysis, and turnkey delivery schedule.
